Chevrolet Sonic Repair Manual: Throttle Body Heater Outlet Pipe Replacement (LUW)



Throttle Body Heater Outlet Pipe Replacement

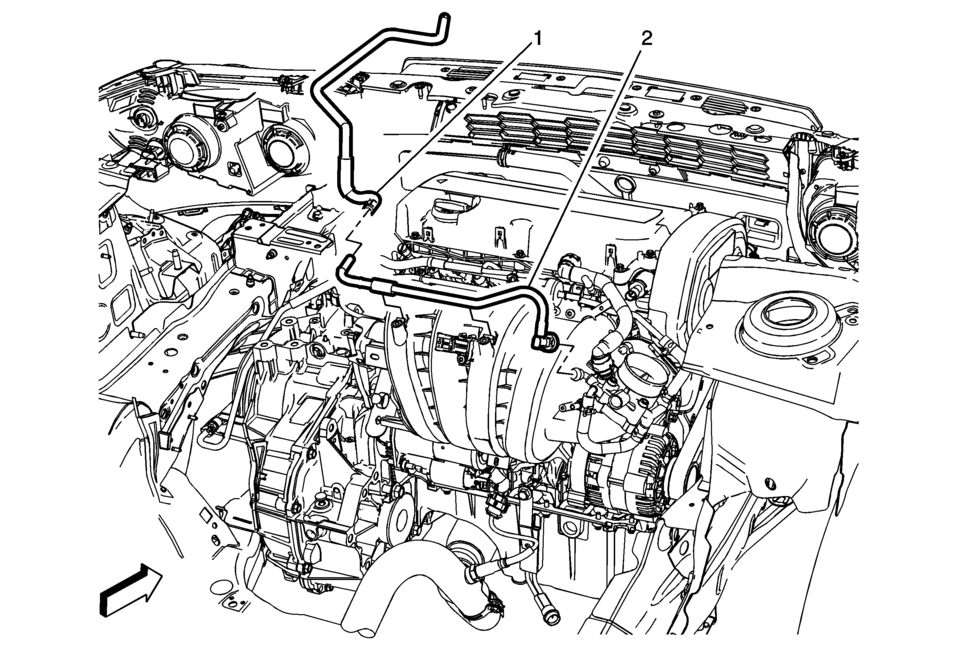

Callout

Component Name

Preliminary Procedure

Drain the cooling system. Refer to Cooling System Draining and Filling.

1

Engine Coolant Air Bleed Hose

2

Throttle Body Heater Outlet Pipe

Procedure

  1. Disconnect throttle body heater outlet pipe from the engine coolant air bleed hose.
  2. Unclip the throttle body heater inlet pipe from the middle of the intake manifold.
  3. Remove the throttle body heater outlet pipe from the throttle body.
