Chevrolet Sonic Repair Manual: Timing Belt Upper Front Cover Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / Valvetrain / Valvetrain Timing / Timing Belt Upper Front Cover Installation

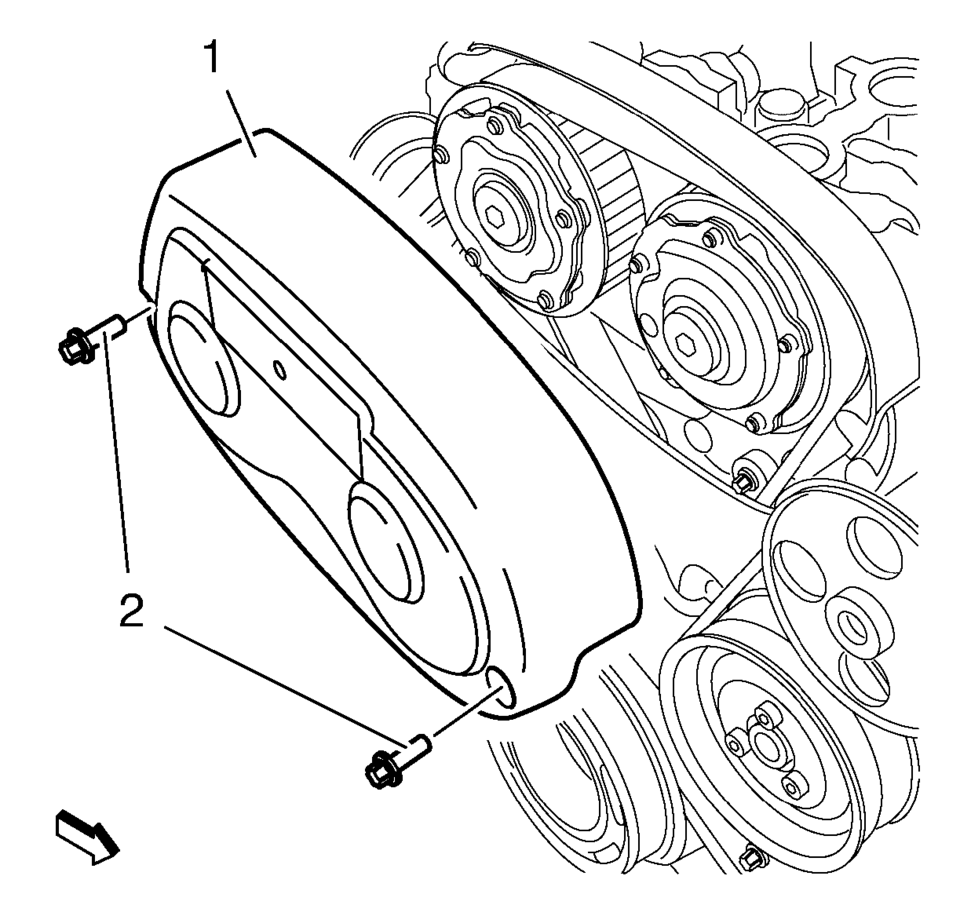

    Install the timing belt upper front cover (1).
  1. Install the timing belt upper front cover (1).
  2. Caution:

    Refer to Fastener Caution.

  3. Install the 2 timing belt upper front cover bolts (2) and tighten to  6 Y(53 lb in)

    .
