Chevrolet Sonic Repair Manual: Water Pump Pulley Removal

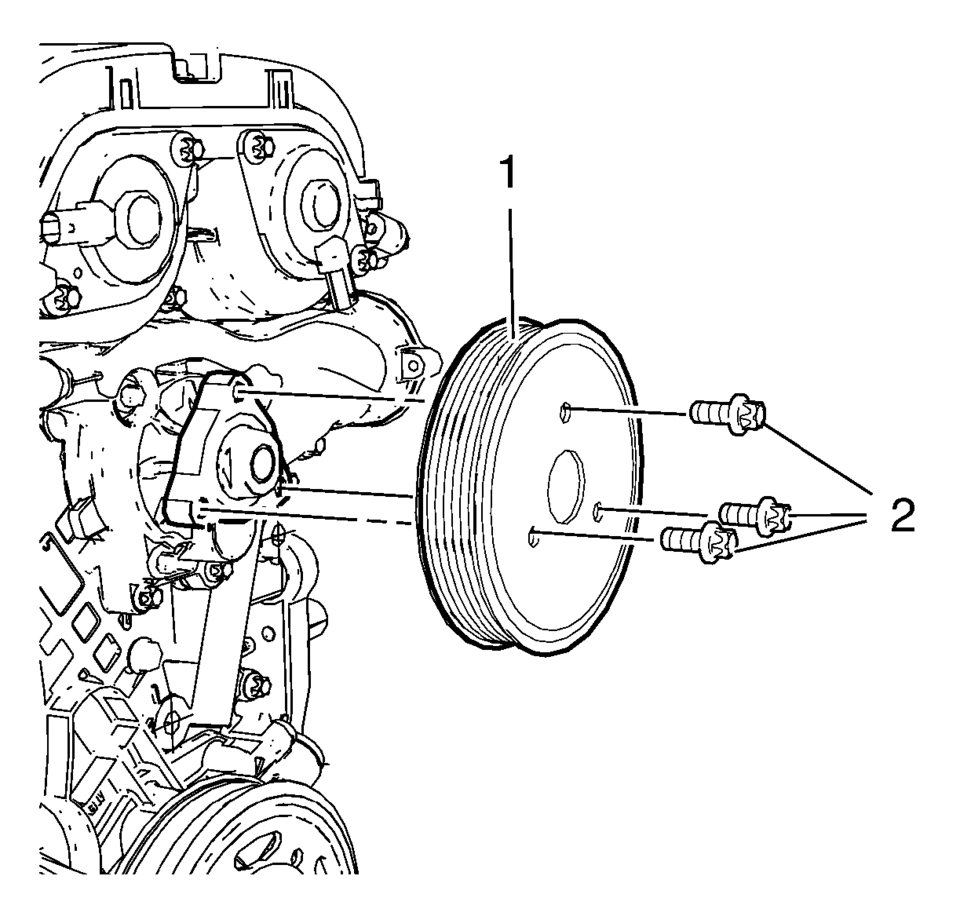

    Loosen the 3 water pump pulley bolts (2) while holding up the water pump
  1. Loosen the 3 water pump pulley bolts (2) while holding up the water pump pulley hub with a wrench.
  2. Remove the 3 water pump pulley bolts (2).
  3. Remove the water pump pulley (1).
Water Pump Pulley Installation
Note: Counterhold the crankshaft balancer. The belt has to be installed for this procedure. Install the water pump pulley (2) to the water pump (3). Caution: R ...

Water Pump Pulley Replacement (LUV)
Removal Procedure Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement. Remove the engine mount bracket. Refer to Engine Mount Bracket Replacement - Right ...
