Chevrolet Sonic Repair Manual: Windshield Wiper and Washer Switch Replacement

Chevrolet Sonic Repair Manual / Body / Wipers, Washers / Windshield Wiper and Washer Switch Replacement



Windshield Wiper and Washer Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the upper trim cover and the lower trim cover from the steering column. Refer to Steering Column Lower Trim Cover Replacement.

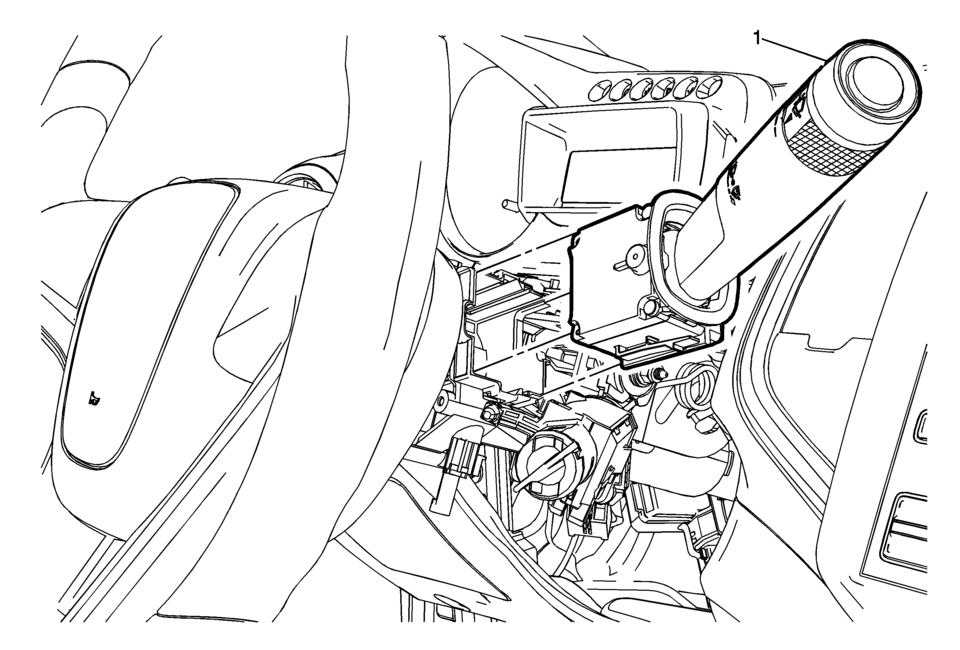

1

Windshield Wiper and Washer Switch

Procedure

  1. Disconnect any electrical connectors as necessary.
  2. Release the plastic retaining tabs and remove the windshield wiper and washer switch from the turn signal switch bracket.
