Chevrolet Sonic Repair Manual: Air Cleaner Assembly Replacement
|

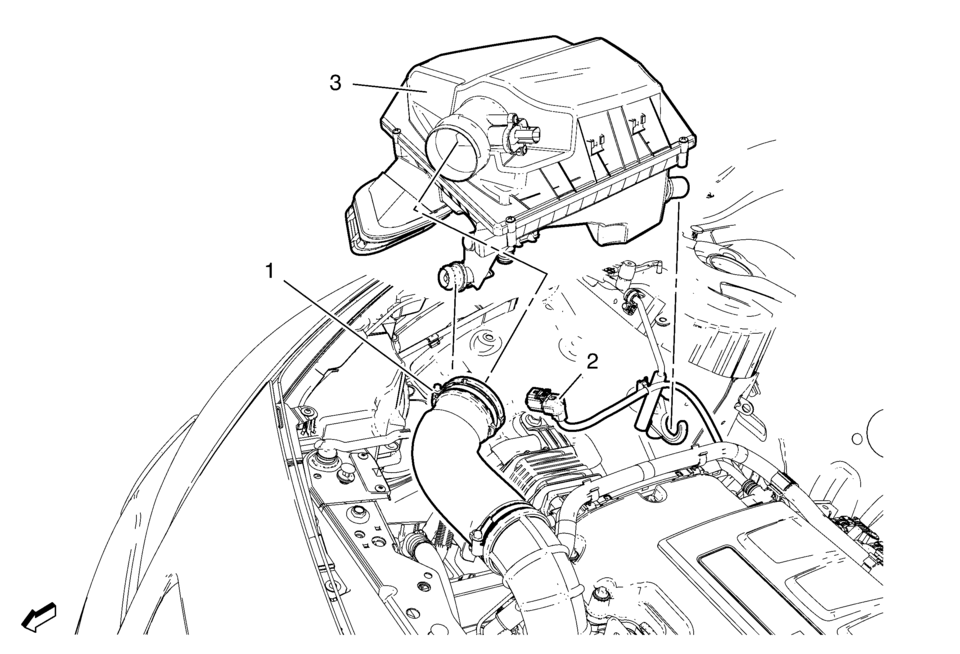

Callout |
Component Name |
|---|---|
|
1 |
Air Cleaner Outlet Duct Clamp. Procedure
Loosen clamp and remove air cleaner outlet duct from air cleaner assembly. |
|
2 |
Mass Flow Sensor Procedure
Disconnect mass air flow sensor wiring harness plug from mass air flow sensor and unclip from retainer clip. |
|
3 |
Air Cleaner Assembly |
Air Cleaner Outlet Duct Replacement
Air Cleaner Outlet Duct Replacement
Callout
Component Name
1
Air Cleaner Outlet Duct Clamp
2
...
