Body Control Module Replacement

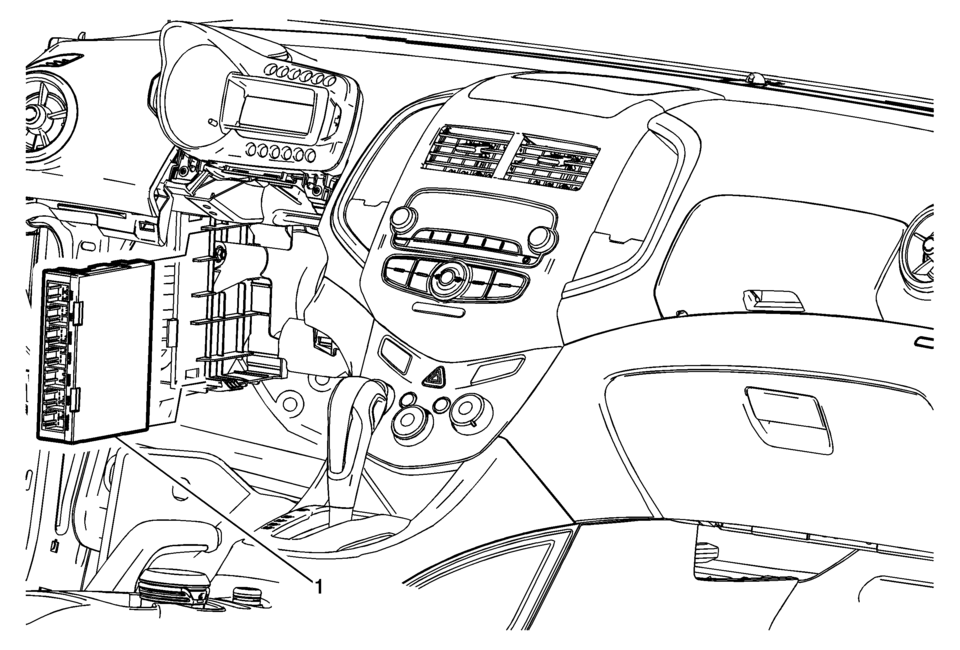

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement
1	Body Control Module Procedure Disconnect the electrical connectors. Push tabs to release the body control module from the bracket. Reprogram the module if replaced. Refer to Control Module References.

Body Control Module Programming and Setup

Note: DO NOT program a control module unless directed to by a service procedure or a service bulletin. If the control module is not properly configured with the correct calibration s ...

Body Control System Description and Operation

The body control system consists of the body control module (BCM), communications, and various input and outputs. Some inputs, outputs and messages require other modules to interact with the BCM. ...
