Chevrolet Sonic Repair Manual: Body Side Upper Front Applique Replacement
|

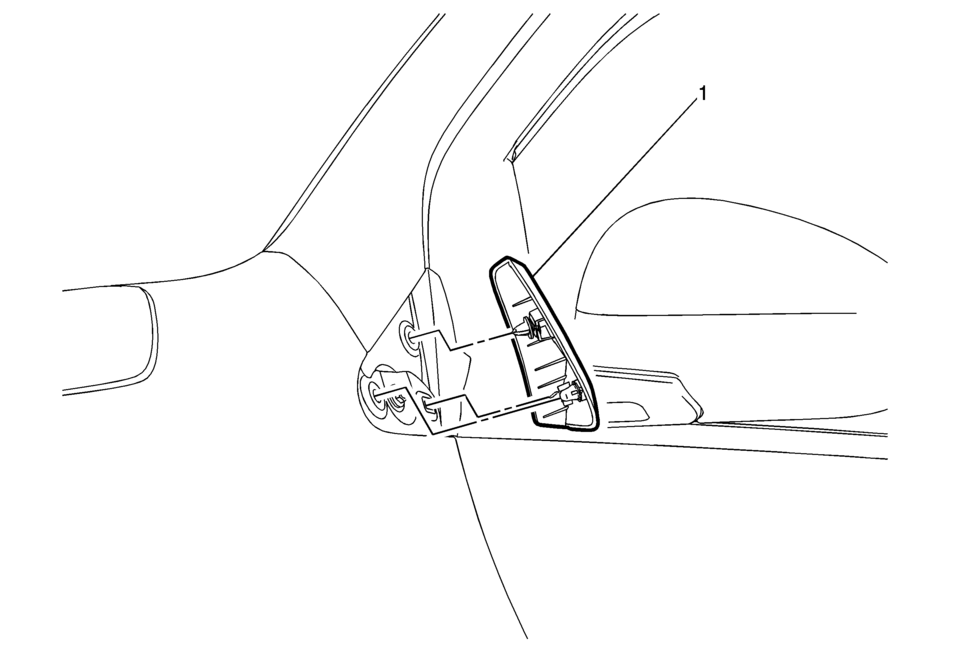

Callout |
Component Name |
|---|---|
|
Caution: Refer to Exterior Trim Emblem Removal Caution. Preliminary Procedure
Open either the left front or right front door in order to access the backside of the body side upper front applique. |
|
|
1 |
Body Side Upper Front Applique |
Information
...
Drivetrain and Front Suspension Frame Replacement
Special Tools
EN-45059 Angle Meter
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Support the radiator and condenser from above using the upper brackets
...
