Chevrolet Sonic Repair Manual: Brake Pressure Modulator Valve Replacement

Removal Procedure

Warning:

Refer to Brake Fluid Irritant Warning.

Caution:

Refer to Brake Fluid Effects on Paint and Electrical Components Caution.

Caution:

Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.

  1. Place the ignition switch in the OFF position.
  2. Remove the battery tray. Refer to Battery Tray Replacement.
  3. Note:

    The area around the electronic brake control module (EBCM) and brake pressure modulator valve (BPMV) assembly must be free from loose dirt to prevent contamination of disassembled ABS components.

  4. Clean the area surrounding the EBCM/BPMV of any accumulated dirt and debris.
  5. Disconnect the EBCM electrical connector.

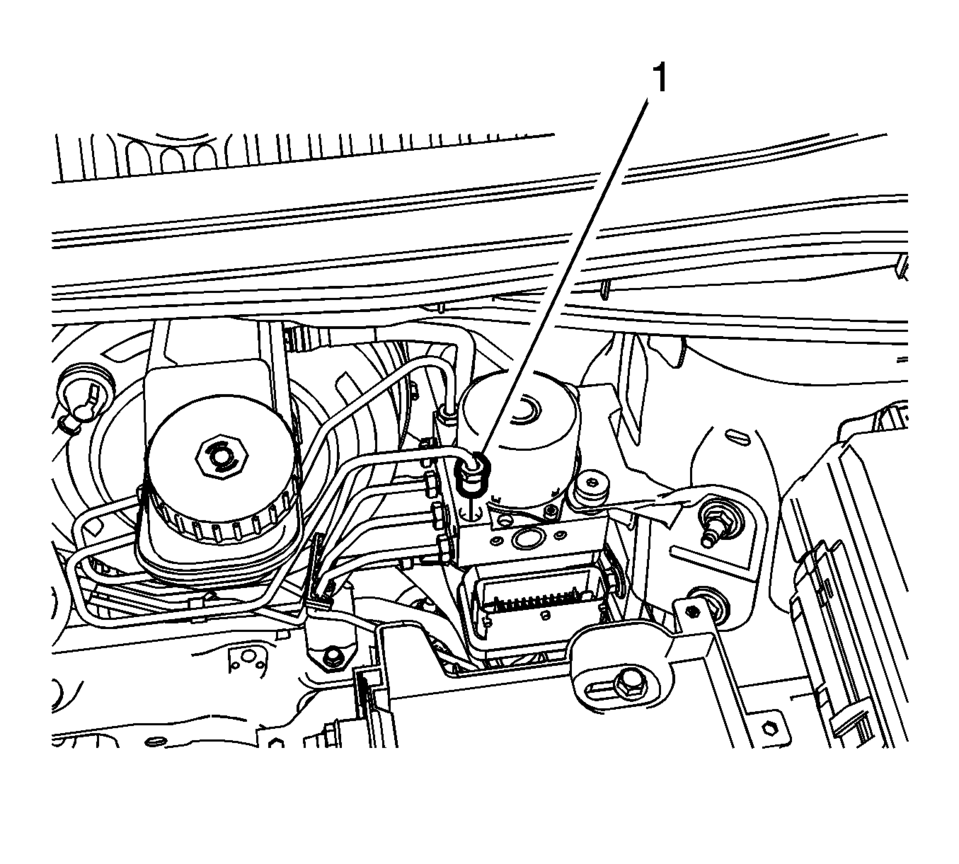

  6. Disconnect the master cylinder secondary brake pipe fitting (1) from the BPMV.
  7. Cap the brake pipe fitting and plug the BPMV inlet port to prevent brake fluid loss and contamination.

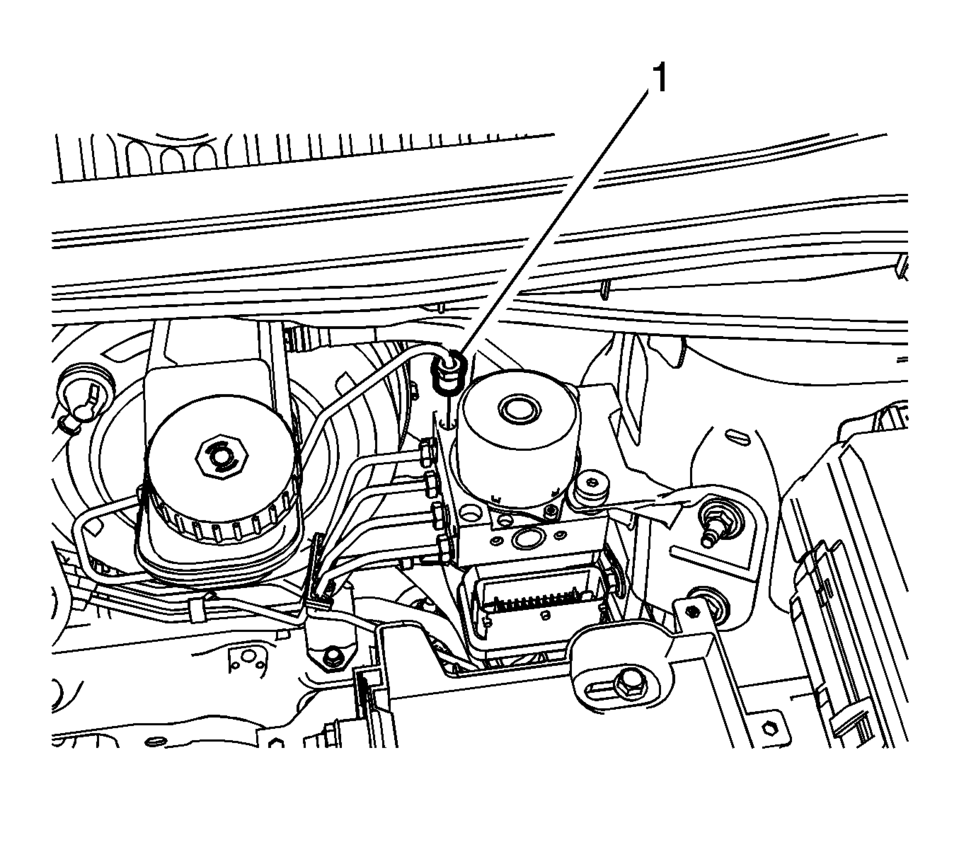

  8. Disconnect the master cylinder primary brake pipe fitting (1) from the BPMV.
  9. Cap the brake pipe fitting and plug the BPMV inlet port to prevent brake fluid loss and contamination.

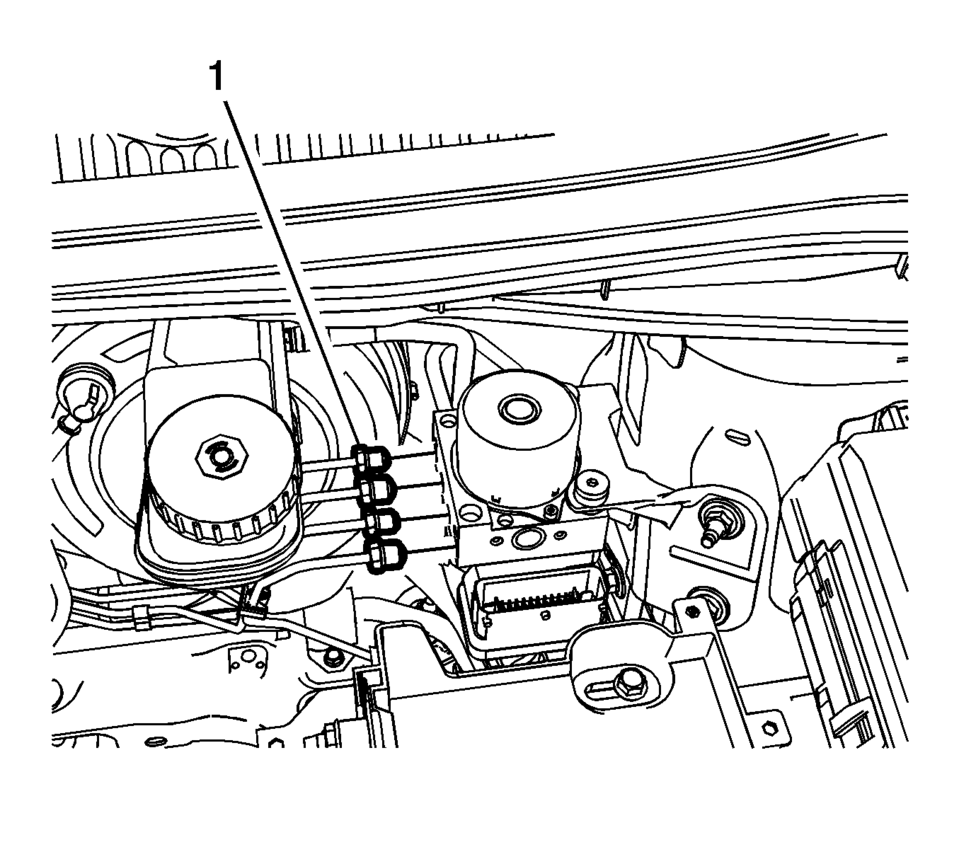

  10. Reference mark the BPMV outlet brake pipe fittings (1) and disconnect the fittings.
  11. Cap the brake pipe fittings and plug the BPMV outlet ports to prevent brake fluid loss and contamination.

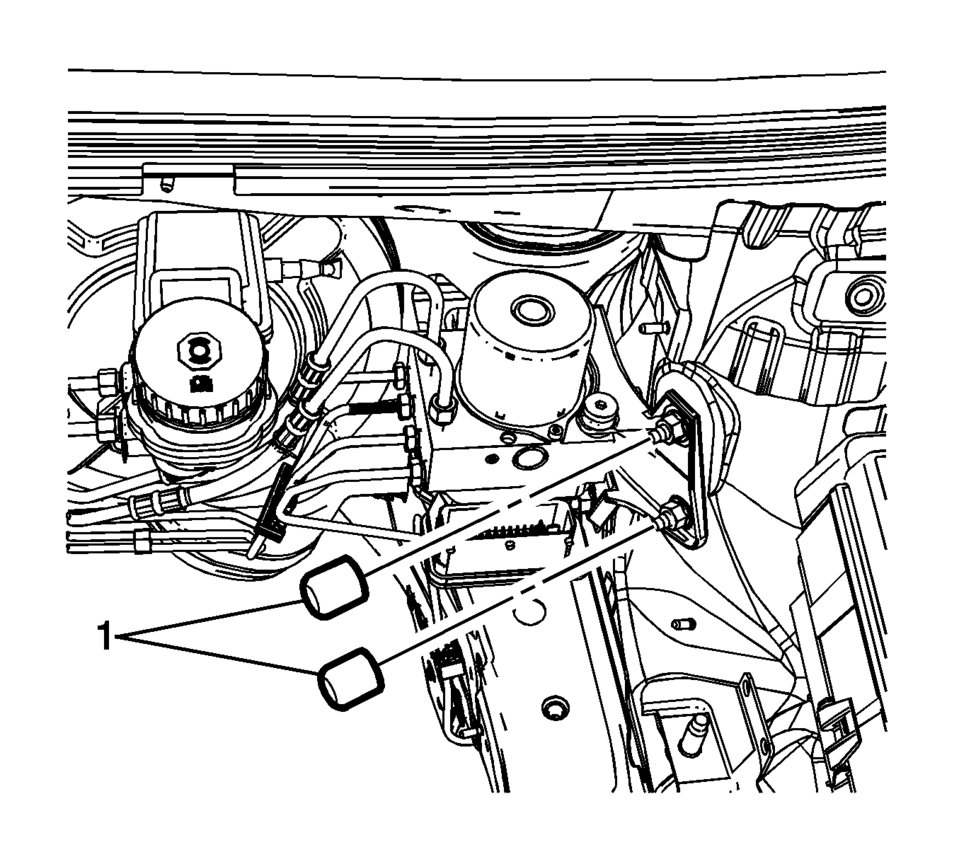

  12. Remove the protective caps (1) from the BPMV bracket nuts.

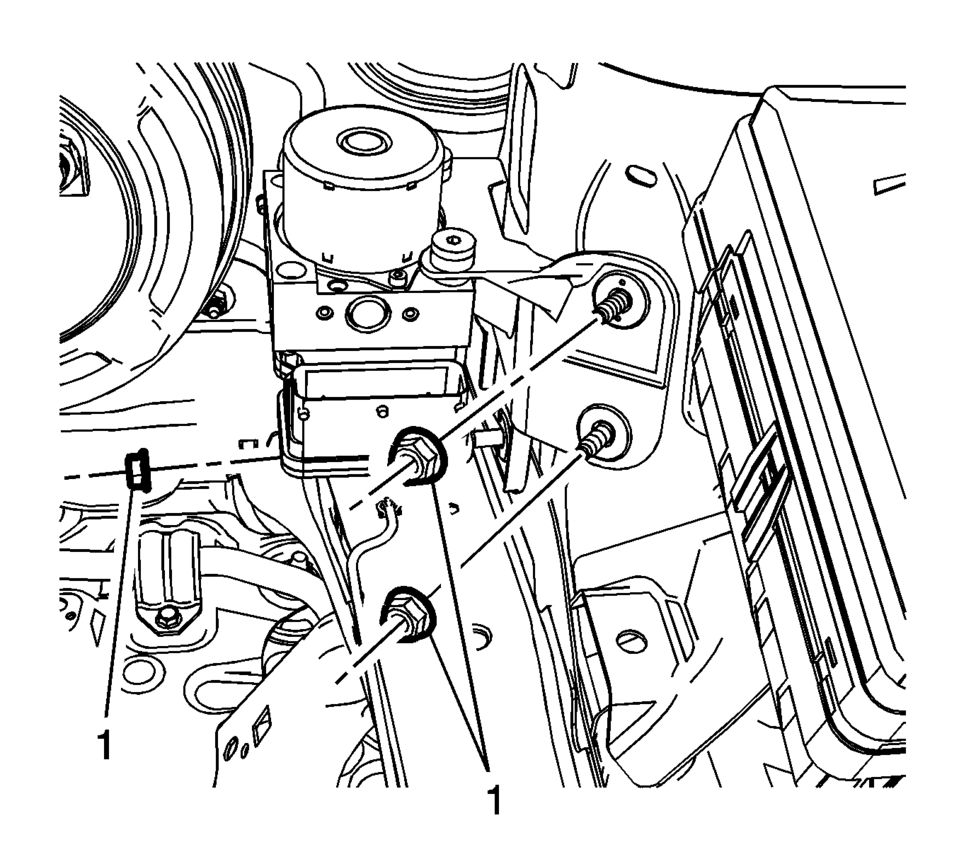

  13. Remove the EBCM/BPMV and bracket assembly nuts (1).
  14. Remove the EBCM/BPMV and bracket assembly from the vehicle.

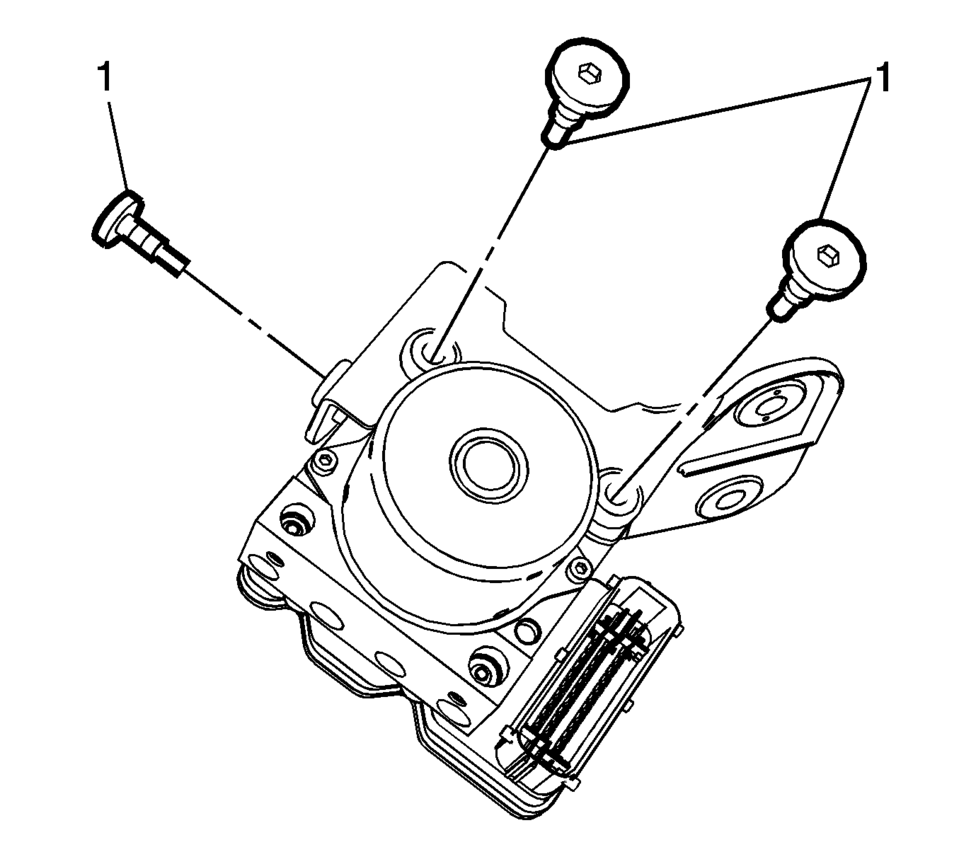

  15. Remove the BPMV bolts (1).
  16. Remove the BPMV bracket.
  17. If installing a new BPMV, remove the EBCM. Refer to Electronic Brake Control Module Replacement.
Installation Procedure
  1. If installing a new BPMV, install the EBCM. Refer to Electronic Brake Control Module Replacement.
  2. Install the BPMV bracket to the BPMV.

  3. Caution:

    Refer to Fastener Caution.

  4. Install the BPMV bolts (1) and tighten to 11 Y (97 lb in)

    .



  5. Install the EBCM/BPMV and bracket assembly to the vehicle.
  6. Install the EBCM/BPMV and bracket assembly nuts (1) and tighten to 17 Y (12 lb ft)

    .



  7. Install the protective caps (1) to the BPMV bracket nuts.

  8. Note:

    Install the brake pipes in the same locations referenced during removal.

  9. Install the BPMV outlet brake pipe fittings (1) to the BPMV outlet ports.
  10. Connect the brake pipe fittings and tighten to 18 Y (13 lb ft)

    .



  11. Connect the master cylinder primary brake pipe fitting (1) to the BPMV and tighten to 18 Y (13 lb ft)

    .



  12. Connect the master cylinder secondary brake pipe fitting (1) to the BPMV and tighten to 18 Y (13 lb ft)

    .

  13. Connect the EBCM electrical connector.
  14. Install the battery tray. Refer to Battery Tray Replacement.
  15. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding.
  16. Perform the Diagnostic System Check - Vehicle.
  17. Observe the brake pedal feel after performing the diagnostic system check. If the pedal now feels spongy, air may have been in the secondary hydraulic circuit of the brake modulator which may have been introduced into the primary circuit. If the pedal feels spongy, bleed the antilock brake system. Refer to Antilock Brake System Automated Bleed.
