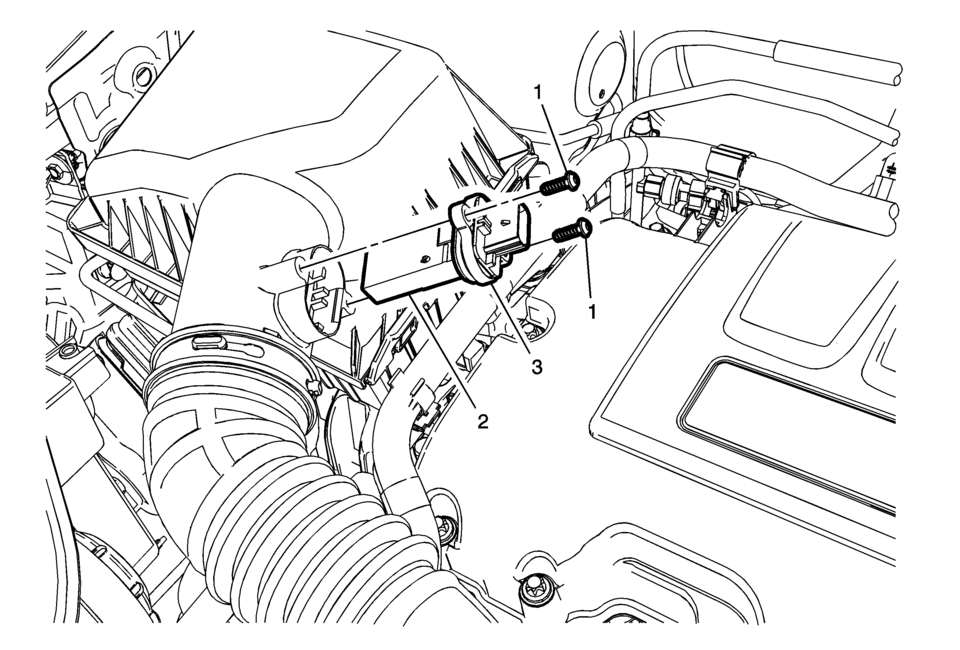

Callout |
Component Name |
---|---|
1 |
Mass Air Flow Sensor Fasteners (Qty: 2) |
2 |
Mass Air Flow Sensor Procedure
|
3 |
Mass Air Flow Sensor Seal Ring |
Tire Sidewall Labeling
Useful information about a tire is molded into its sidewall. The examples show
a typical passenger vehicle tire and a compact spare tire sidewall.
Passenger (P-Metric) Tire Example
(1) Tire Size: The tire size is a combination of letters and numbers used to
define a particular tire's wid ...
Special Tools
Illustration
Tool Number/Description
CH 21177
J 21177-A
Drum to Brake Shoe Clearance Gauge
CH 41013
J 41013
Rotor Resurfacing Kit
C ...
Camshaft Actuator System Description
Camshaft Actuator System Overview
(1)
Camshaft Actuator Vane
(2)
Timing Chain Sprocket
(3)
Engine Oil Pressure-For retarding the camshaft
(4)
Camshaft
(5)
Input Signals from Engine Sen ...
