Callout |
Component Name |
---|---|
1 |

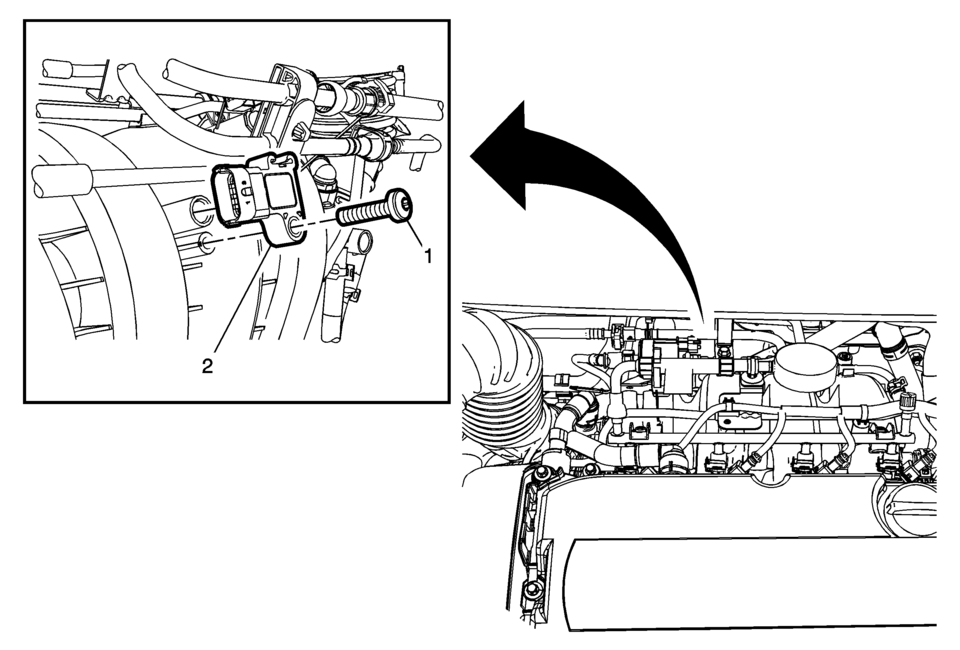

Manifold Absolute Pressure Sensor Fastener Caution: Refer to Fastener Caution
6 Y (54 lb in) |
2 |
Manifold Absolute Pressure Sensor Procedure
Disconnect the electrical wiring harness connector from the Manifold Absolute Pressure Sensor. |
Luggage/Load Locations
Load Compartment (Hatchback)
The load compartment cover can be used to conceal objects under it or removed
and placed on the bottom of the load compartment to carry larger loads.
To remove the load compartment cover:
1. Lift up on the load compartment cover and pull out.
2. Store the load comp ...
Brake Drum Replacement (J93, J94)
Special Tools
CH-41013 Rotor Resurfacing Kit
CH-42450-A Wheel Hub Resurfacing Kit
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Warning: Refer to Brake Dust Warning.
Release the park brake.
Raise and support the vehicle. Refer to Lif ...
Radiator Air Baffle Replacement (LUV, LUW)
Radiator Air Baffle Replacement
Callout
Component Name
Preliminary Procedure
Remove the front bumper fascia assembly. Refer to Front Bumper Fascia
Replacement.
1
Radiator Air Upper Baffle Push P ...
