Nissan Armada 2025-2026 Owner's Manual: BSW system operation

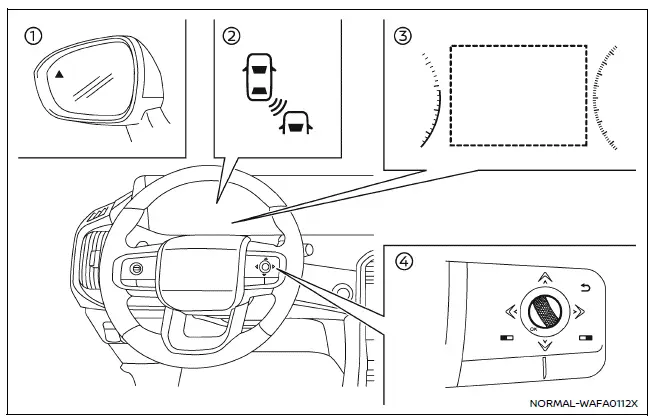

- Side indicator light
- BSW indicator (vehicle information display)
- Vehicle information display
- Steering-wheel-mounted controls (right side)
The Nissan Armada BSW system becomes active at speeds above approximately 20 MPH (32 km/h), ensuring effective operation during typical driving conditions.
When another vehicle is detected within the blind spot area, the side indicator light on the corresponding mirror will illuminate.
If the driver activates the turn signal while a vehicle is still present in the detection zone, the Nissan Armada BSW system responds with an audible warning (two chimes), and both the side indicator light and BSW indicator begin flashing. These warnings remain active until the detected vehicle leaves the monitored area.
The side indicator light in the Nissan Armada briefly illuminates when the ignition is turned ON, confirming system readiness.
Additionally, the brightness of the side indicator light automatically adjusts based on surrounding light conditions, ensuring clear visibility both днем and вночі.
Basic information
WARNING
Improper use or failure to follow the safety instructions for the Nissan Armada
Blind Spot Warning (BSW) system may result in serious injury or even fatal accidents.
The Nissan Armada B ...
How to enable/disable the BSW system
Vehicle information display
Steering-wheel-mounted controls (right side)
To configure the Nissan Armada BSW system, follow these steps:
1. Press the
button until "Settings" ...
