Chevrolet Sonic Repair Manual: Catalytic Converter Heat Shield Replacement (LUV)

Chevrolet Sonic Repair Manual / Powertrain / Engine / Emissions / Catalytic Converter / Catalytic Converter Heat Shield Replacement (LUV)

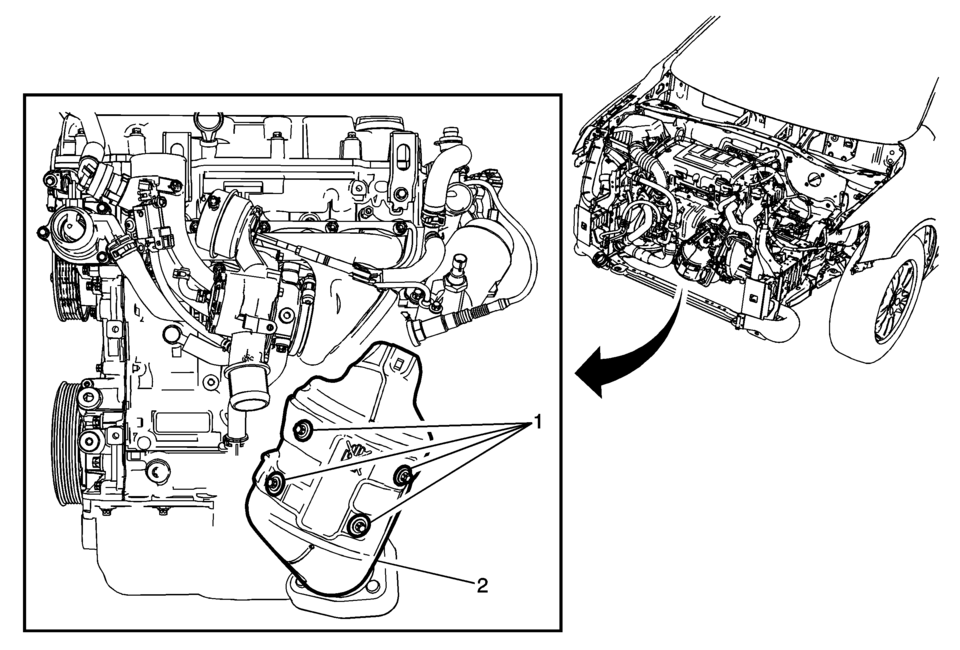

Catalytic Converter Heat Shield Replacement

Callout

Component Name

Warning:

Refer to Exhaust Service Warning.

1

Catalytic Converter Heat Shield Fasteners (Qty: 4)

Caution:

Refer to Fastener Caution.

Tighten


9 Y (80 lb in).

2

Catalytic Converter Heat Shield

Catalytic Converter
...

Catalytic Converter Replacement (LUV)
Removal Procedure Warning: Refer to Exhaust Service Warning. Warning: Refer to Protective Goggles and Glove Warning. Remove the exhaust manifold heat shield. Refer to ...
