Exhaust Manifold with Catalytic Converter Replacement

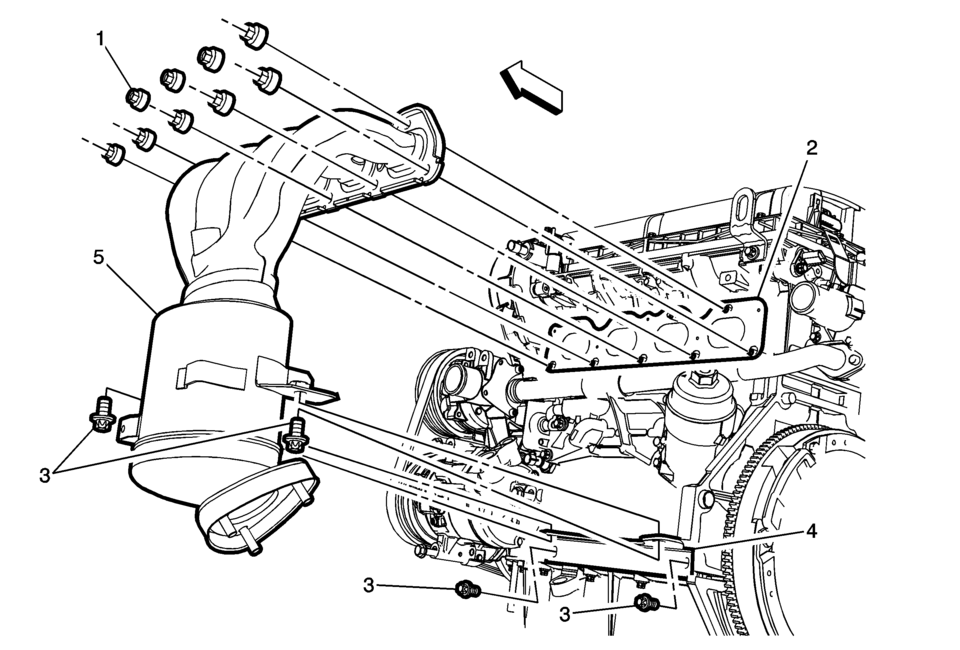

Callout

Component Name

Warning:

Refer to Protective Goggles and Glove Warning.

Warning:

Refer to Exhaust Service Warning.

Preliminary Procedure

  1. Remove the catalytic converter heat shield. Refer to Catalytic Converter Heat Shield Replacement.
  2. Remove the exhaust front pipe. Refer to Exhaust Front Pipe Replacement.

1

Exhaust Manifold to Cylinder Head Nut (Qty: 9)

Caution:

Refer to Fastener Caution.

Tighten


15 Y (11 lb ft)

2

Exhaust Manifold Gasket

3

Exhaust Manifold Brace Bolt (Qty: 4)

Tighten


20 Y (15 lb ft)

4

Exhaust Manifold Brace

5

Exhaust Manifold with Catalytic Converter

Procedure

  1. Disconnect the temperature sensor and transfer parts if replacing the exhaust manifold with catalytic converter.
  2. Clean the sealing surfaces.
  3. Replace the exhaust gasket with a NEW gasket.
  4. Replace the exhaust manifold nuts with NEW nuts.
Catalytic Converter Replacement (LUV)
Removal Procedure Warning: Refer to Exhaust Service Warning. Warning: Refer to Protective Goggles and Glove Warning. Remove the exhaust manifold heat shield. Refer to ...

Warm Up Three-Way Catalytic Converter Installation
Install the warm up three way catalytic converter (5) to the brackets and the turbocharger. Use a NEW warm up three way catalytic converter seal (2). Note: Never re-us ...
