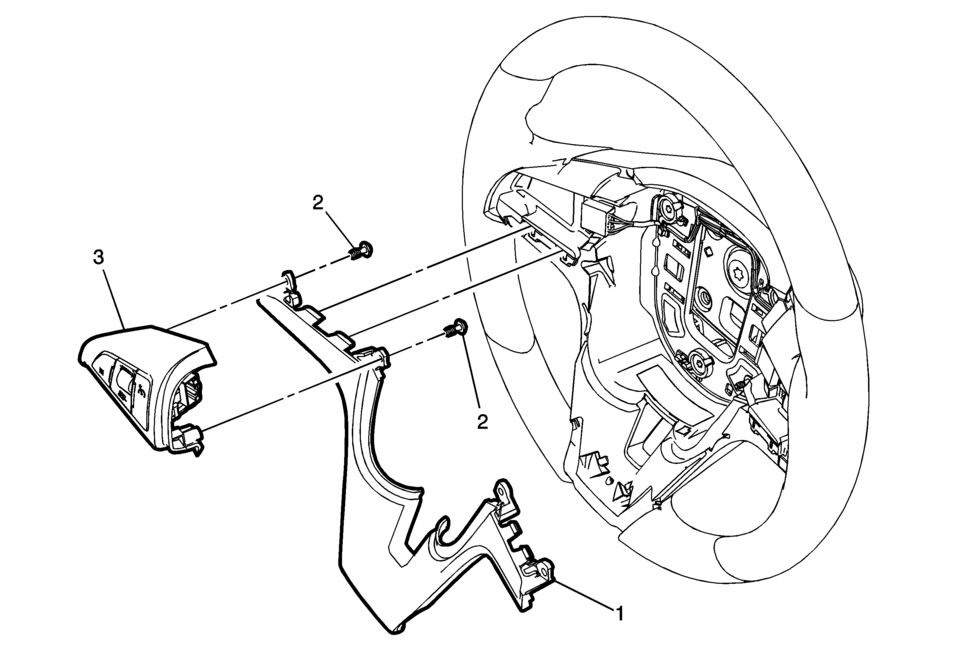

Callout |
Component Name |
---|---|
Preliminary Procedure
Remove the steering wheel inflatable restraint module. Refer to Airbag Steering Wheel Module Replacement. |
|
1 |
Steering Wheel Lower Cover |
2 |
Steering Wheel Lower Cover Fastener (Qty: 2) |
3 |
Cruise Control Switch Assembly Procedure
Disconnect the electrical connector. |
Lower Anchor and Top Tether Anchor Locations
(Top Tether Anchor): Seating positions
with top tether anchors.
(Lower Anchor): Seating positions
with two lower anchors.
To assist in locating the lower anchors, each seating position with lower anchors
has two labels, near the crease between the seatback and the seat cushion.
To ass ...
Door Lock and Ignition Lock Folding Key Blade Removal and Installation
Special Tools
BO-51098 Flip Key Blade Fixture
For equivalent region tools, refer to Special Tools.
Caution: Failure to properly support the Remote Keyless Entry
(RKE) transmitter assembly while replacing the key blade may cause internal
damage to the transmitter assembly. ...
Airbag Steering Wheel Module Coil Centering
Note: If a double wire harness strap is installed onto the wire
harness assembly and steering column, the original holder for the wire strap(s)
MUST be reused during installation.
Remove the wire harness strap(s) where necessary.
Caution: The new SIR coil assembly will ...
