Nissan Armada 2025-2026 Owner's Manual: Driver Monitor (ProPILOT Assist 2.1)
Basic information

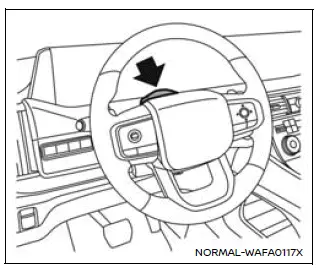

In the Nissan Armada equipped with ProPILOT Assist 2.1, the Driver Monitor system plays a critical role in ensuring driver awareness and safety. Using a driver-facing camera mounted on the steering column, the system continuously evaluates the driver’s attentiveness by analyzing head position, gaze direction, and eye openness.

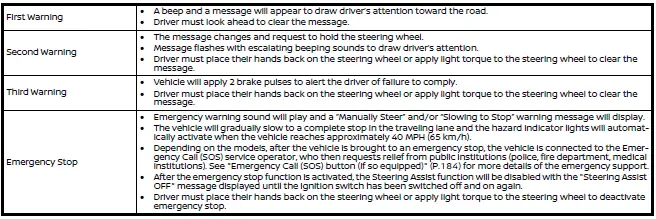

If the Nissan Armada detects that the driver is not paying sufficient attention to the road ahead, a sequence of escalating visual and audible warnings will be triggered. These alerts are specifically designed to bring the driver’s focus back to the driving task as quickly as possible.
NOTE:
The Driver Monitor system in the Nissan Armada operates continuously in all driving modes and is not limited to when ProPILOT Assist 2.1 is active.

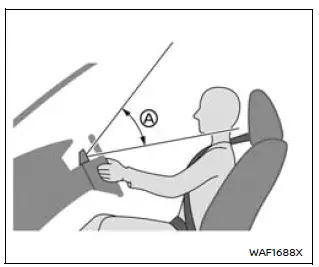

If the driver’s face falls outside the detection range A, the Nissan Armada Driver Monitor may not function correctly. To ensure proper operation, adjust your seating position or steering column so the camera has a clear, unobstructed view of your entire face.
Attention to the road (ProPILOT Assist 2.1)
On Nissan Armada models equipped with ProPILOT Assist 2.1, the system uses advanced camera-based monitoring to determine whether the driver is actively observing the road ahead. Maintaining attention is essential to avoid progressive warning alerts and ensure safe operation of driver assistance features.
Steering Assist with HD map data (a feature of ProPILOT Assist 2.1)
In the Nissan Armada equipped with ProPILOT Assist 2.1, Steering Assist is enhanced
by HD map data, enabling more advanced driving support. When all required conditions
are met, the system indicat ...
Lane Change Assist (ProPILOT Assist 2.1)
Basic information
Lane Change Assist in the Nissan Armada is an advanced feature of ProPILOT Assist
2.1, designed to support the driver during lane changes under appropriate conditions.
Before us ...
