Engine Coolant Fan Shroud Replacement

Callout

Component Name

Preliminary Procedures

  1. Drain the engine coolant. Refer to Cooling System Draining and Filling.
  2. Remove the radiator surge tank. Refer to
  3. Remove the radiator surge tank outlet hose from the engine coolant fan shroud and position it out of the way.
  4. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement.
  5. Remove the front compartment front insulator cover. Refer to Front Compartment Front Insulator Cover Replacement.

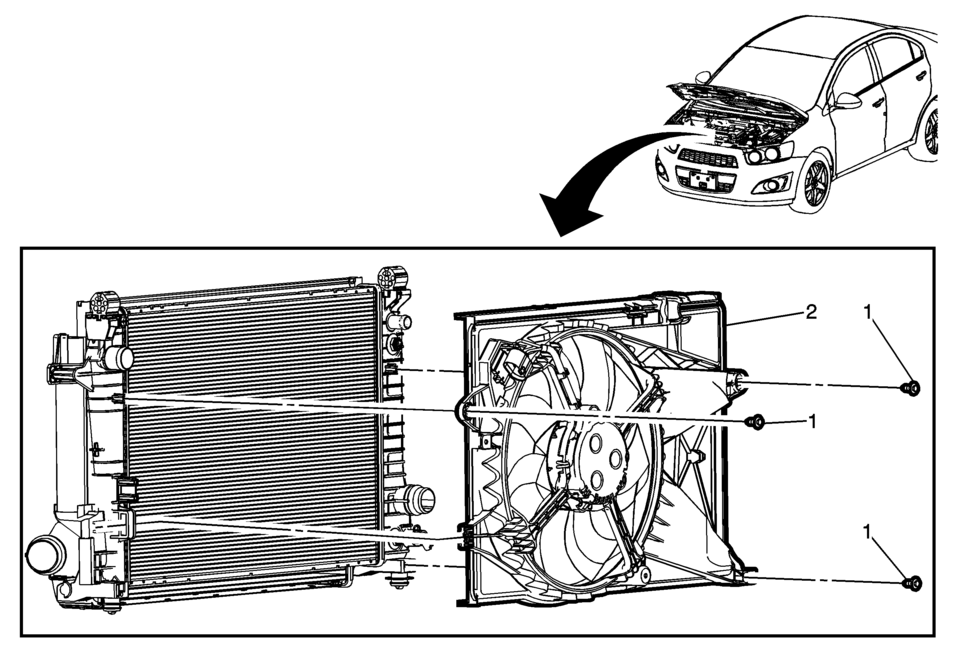

1

Engine Cooling Fan Shroud Fasteners (Qty: 3)

Caution:

Refer to Fastener Caution.

2

Engine Cooling Fan Shroud Assembly.

Procedure

  1. Disconnect the electrical connectors.
  2. Transfer all necessary components.
Engine Coolant Fan Shroud Replacement (LDE LUW)
