Chevrolet Sonic Repair Manual: Engine Mount Bracket Installation

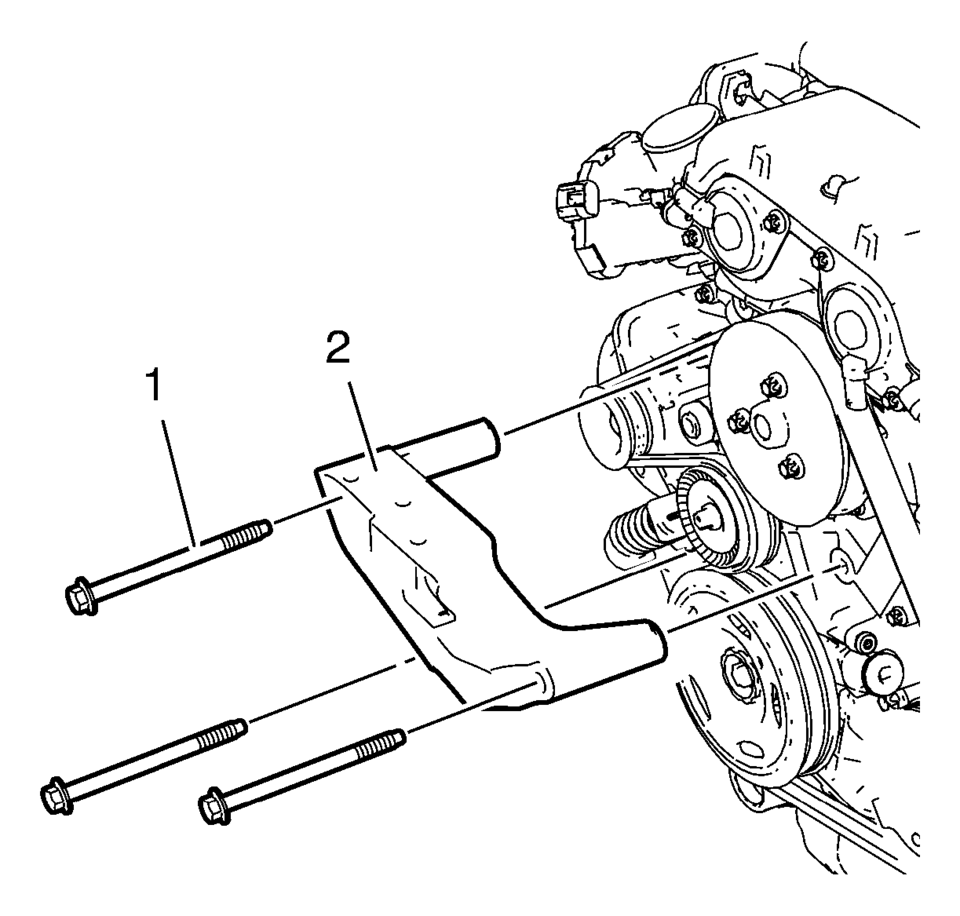

- Install the engine mount bracket (2).
- Install the 3 engine mount bracket bolts and tighten to 60 Y (45 lb ft) + 45?E0°
.
Caution:
Refer to Fastener Caution.
Engine Mounts
...
Engine Mount Bracket Removal
Remove the 3 engine mount bracket bolts (1).
Remove the engine mount bracket (2).
...
