Nissan Armada 2025-2026 Owner's Manual: Exterior rear

Nissan Armada 2025-2026 Owner's Manual / Illustrated table of contents / Exterior rear

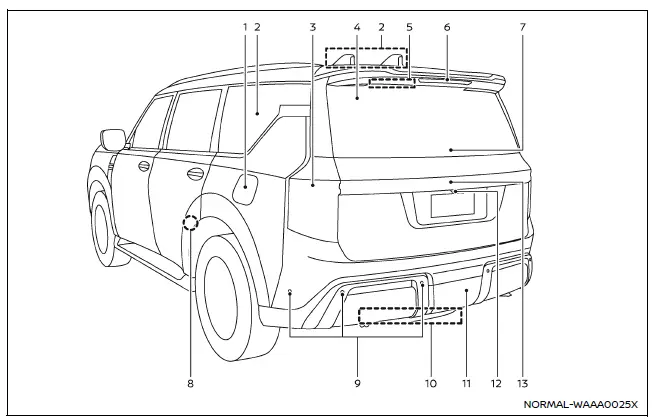

Nissan Armada rear exterior with sensors, lights and liftgate
Example

The rear exterior section of the Nissan Armada includes advanced safety sensors, lighting systems, and cargo access features that enhance usability and safety during reversing, towing, and everyday driving scenarios.

Fuel-filler door
- Fuel information
Antenna**
Rear combination light
Rear window defroster
Rear window wiper and washer
- Switch operation
- Window washer fluid
High-mounted stop light
Driving recorder camera*
Intelligent Rear View Mirror camera*
Child safety rear door locks
Sonar sensors
- Rear Automatic Braking (RAB)
- Sonar system
- ProPILOT Assist 2.1*
Spare tire (under the vehicle)
Trailer hitch
Rear view camera
Liftgate
- Intelligent Key system*

*: if so equipped
**: For ProPILOT Assist 2.1 models, there are two antennas on the roof (GNSS and radio). Other Nissan Armada models use a single antenna configuration.
