Front Bumper Fascia Bracket Replacement

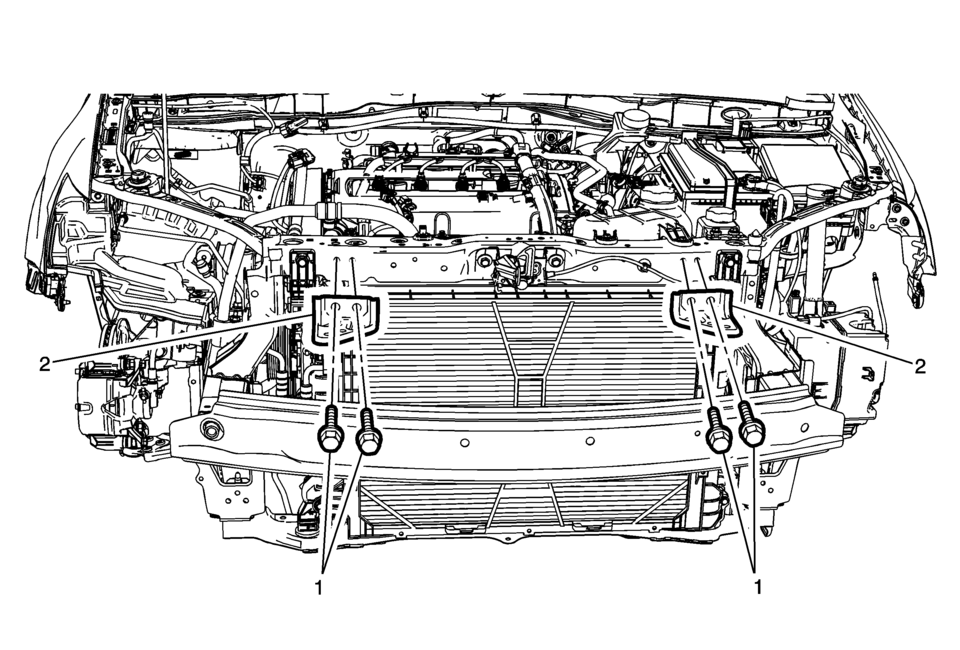

Callout

Component Name

Preliminary Procedure

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.
  2. Remove the front bumper fascia center support bracket. Refer to Front Bumper Fascia Center Support Bracket Replacement.

1

Front Bumper Fascia Bracket Bolt (Qty:?€‰4)

Caution:

Refer to Fastener Caution.

Tighten


9?€‰Y?€‰(80?€‰lb?€‰in)

2

Front Bumper Fascia Bracket

Note:

Transfer any parts as needed.
