Front Seat Cushion Outer Trim Panel Replacement

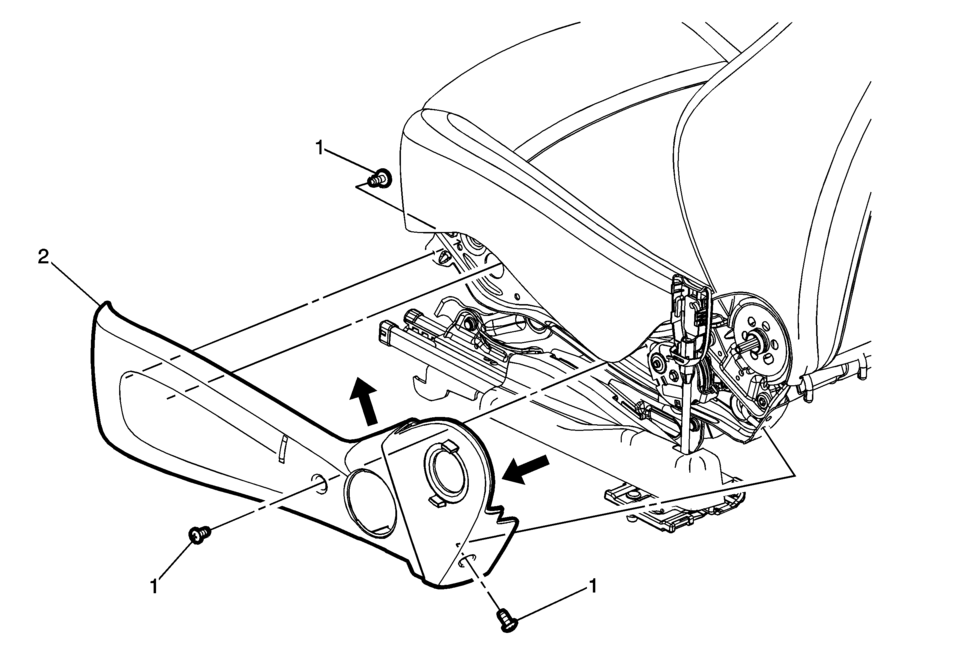

Callout

Component Name

Preliminary Procedures

  1. Remove the driver or passenger seat recliner handle. Refer to Front Seat Back Recliner Handle Replacement
  2. Remove the front seat adjuster handle. Refer to Driver or Passenger Seat Adjuster Handle Replacement

1

Front Seat Cushion Outer Trim Panel Fasteners (Qty:?€‰3)

Caution:

Refer to Fastener Caution.

2

Front Seat Cushion Outer Trim Panel

Procedure

  1. Make sure the seat is in the full up position.
  2. Gently pull outboard on the front half of the finish cover to disengage the panel rib from the seat frame.
  3. Firmly grasp the upper area of the finish cover that folds over the seat cushion frame, this area needs to be flexed outward while sliding the finish cover upward.
  4. If replacing the cover, transfer components as necessary.
