Nissan Armada 2025-2026 Owner's Manual: Front seats

Nissan Armada 2025-2026 Owner's Manual / Safety - Seats, seat belts and supplemental restraint system / Seats / Front seats

Front power seat adjustment

The Nissan Armada front seats are equipped with advanced power adjustment features designed for comfort and ergonomic support during long drives.

Operating tips:

The power seat motor includes an automatic overload protection system. If adjustment stops unexpectedly, wait approximately 30 seconds before using the switch again.
To prevent battery discharge in your Nissan Armada, avoid adjusting the power seats for extended periods when the engine is off.

The front power seats in the Nissan Armada may also be controlled through the touch screen display, depending on vehicle configuration.

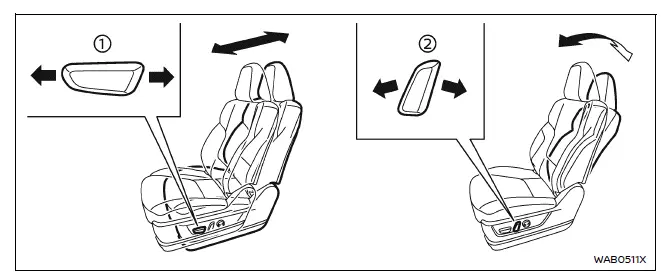

Nissan Armada front seat adjustment controls forward backward reclining

Forward and backward:

Move the adjustment switch 1 forward or backward to position the seat as desired for optimal comfort and visibility.

Reclining:

Use adjustment switch 2 to change the angle of the seatback according to your preferred seating position.

The reclining function in the Nissan Armada allows drivers and passengers of different body types to achieve proper seat belt positioning and improved comfort.

The seatback may also be reclined when the vehicle is parked, allowing occupants to rest comfortably inside the Nissan Armada.

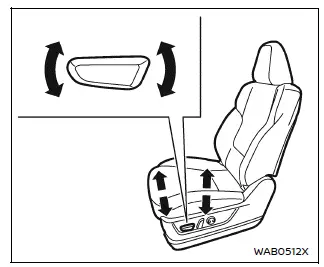

Nissan Armada reclining seat adjustment demonstration

Seat lifter (if so equipped):

Adjust the height and angle of the seat cushion using the switch as illustrated, ensuring better driving posture and road visibility in the Nissan Armada.

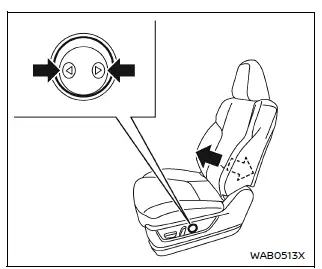

Nissan Armada seat height adjustment Type A control
Type A (if so equipped)

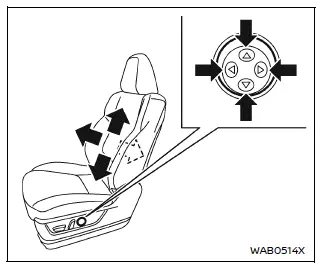

Nissan Armada seat height adjustment Type B control
Type B (if so equipped)

Lumbar support (if so equipped)

The Nissan Armada offers lumbar support adjustment to enhance lower back comfort for both the driver and front passenger.

Use the switch as shown to increase or decrease lumbar support until the ideal seating position is achieved.

NOTE:

During extended use, air pressure in the lumbar system may decrease. If this occurs, press the switch backward for about 15 seconds to release air completely, then press forward to refill and restore your preferred support level.

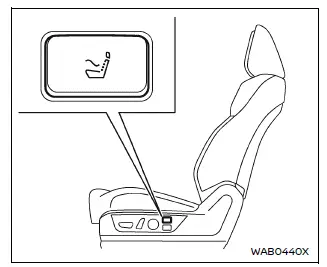

Nissan Armada lumbar support adjustment control

Massage function (if so equipped)

The Nissan Armada includes an advanced seat massage feature designed to enhance comfort during long journeys.

With the engine running and all doors closed, press the switch to activate the massage function. Press again to stop.

The system automatically deactivates after approximately 30 minutes of continuous use.

Massage modes can be customized via the touchscreen display in the Nissan Armada.

NOTE:

If lumbar support is set to a high level, the massage function may take slightly longer to initiate.

Nissan Armada seat massage function control button

Side support (if so equipped)

The side support system in the Nissan Armada improves lateral body stability for both the driver and front passenger, especially during cornering.

Adjust the side bolsters using the switch until the desired support level is achieved.

Press the front of the switch to tighten support and the rear to loosen it.

NOTE:

As with lumbar support, air pressure may decrease over time. Reset the system by releasing and refilling the air using the switch as described above.
