Chevrolet Sonic Repair Manual: Front Side Door Lock Cylinder Replacement

Chevrolet Sonic Repair Manual / Accessories / Security & Keyless Entry / Locks / Front Side Door Lock Cylinder Replacement

Front Side Door Lock Cylinder Replacement

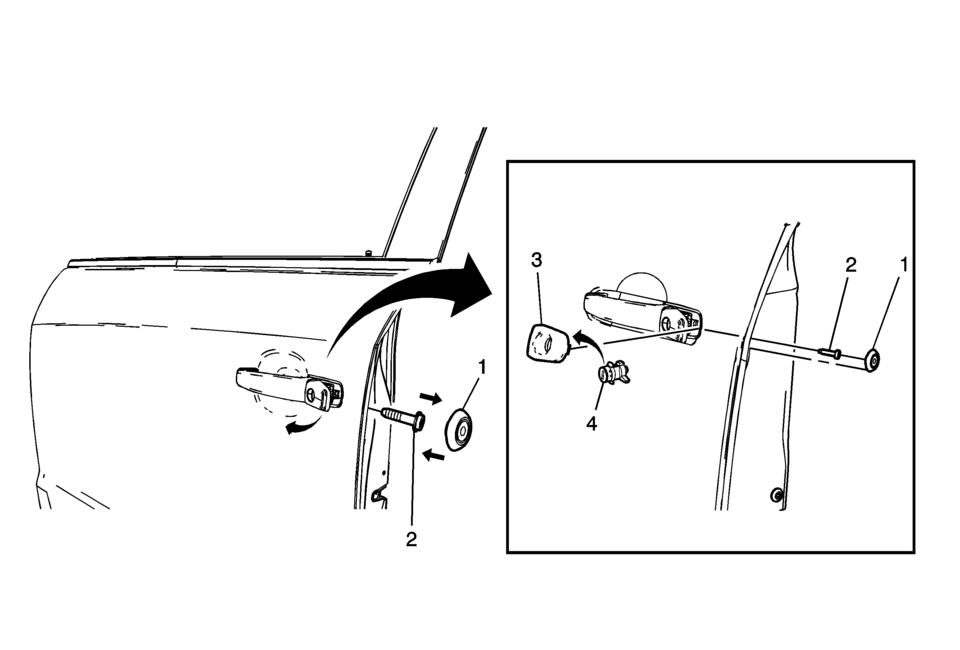

Callout	Component Name
1	Front Side Door Lock Cylinder Screw Access Plug Tip: Use the appropriate tool, remove the plug.
2	Front Side Door Lock Cylinder Clamp Screw Caution: Refer to Fastener Caution. Procedure Do Not remove the cylinder clamp screw completely from the housing, unscrew the screw to a hard stop, releasing the cylinder from the housing. Tip: It is not necessary to remove the outside door handle or housing to replace the lock cylinder. Tighten 5 Y (44 lb in)
3	Front Side Door Lock Cylinder Cover Procedure Remove the lock cylinder cover. Refer to Front Side Door Lock Cylinder Opening Cover Replacement.
4	Front Side Door Lock Cylinder Procedure Ensure that the lock cylinder gasket is in place when installing the lock cylinder to the handle. Inspect the lock cylinder for proper operation.

Front Side Door Lock Cylinder Opening Cover Replacement

Front Side Door Lock Cylinder Opening Cover Replacement Callout Component Name 1 Front Side Door Lock Cylinder Opening C ...

Front Side Door Lock Cylinder Rod Replacement

Front Side Door Lock Cylinder Rod Replacement Callout Component Name Preliminary Procedure Remove the rear side door window rear gu ...
