Chevrolet Sonic Repair Manual: Front Side Door Upper Front Trim Panel Replacement
|
Callout |
Component Name |
|---|---|
|
1 |

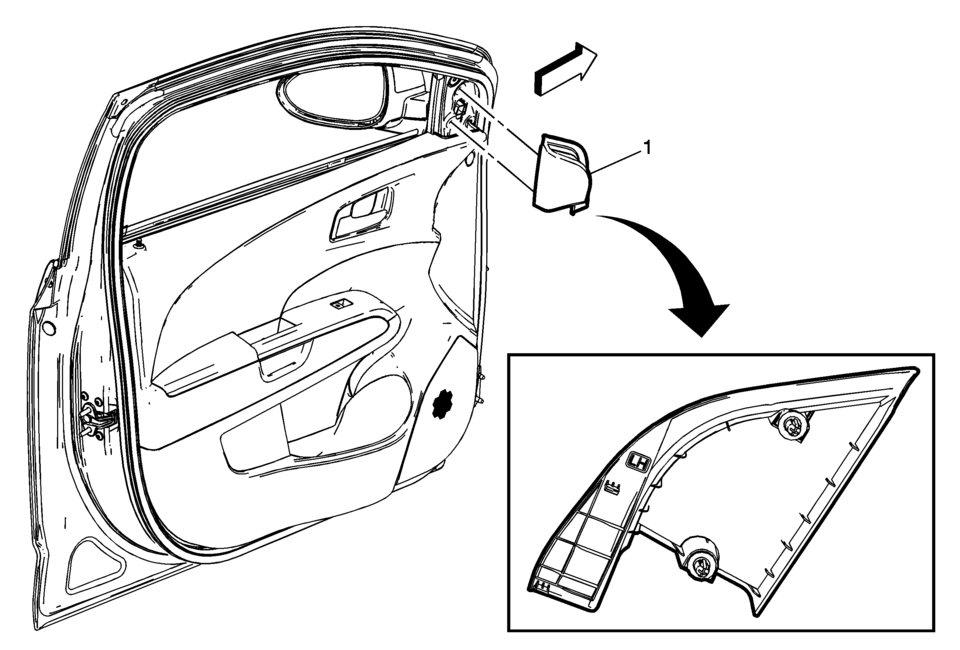

Front Side Door Upper Front Trim Panel Assembly Procedure
Use the appropriate plastic trim tool to aid in the removal of the door trim. |
Front Side Door Trim Replacement
Front Side Door Trim Replacement
Callout
Component Name
Preliminary Procedure
Remove the front side door upper front trim panel ...
Front Side Door Window Switch Bezel Replacement (Left Side)
Front Side Door Window Switch Bezel Replacement
Callout
Component Name
Preliminary Procedure
Remove the front side door trim. R ...
