Chevrolet Sonic Repair Manual: Front Side Door Window Regulator Motor Replacement

Chevrolet Sonic Repair Manual / Body / Glass & Windows / Window Control / Window Regulator / Front Side Door Window Regulator Motor Replacement



Front Side Door Window Regulator Motor Replacement

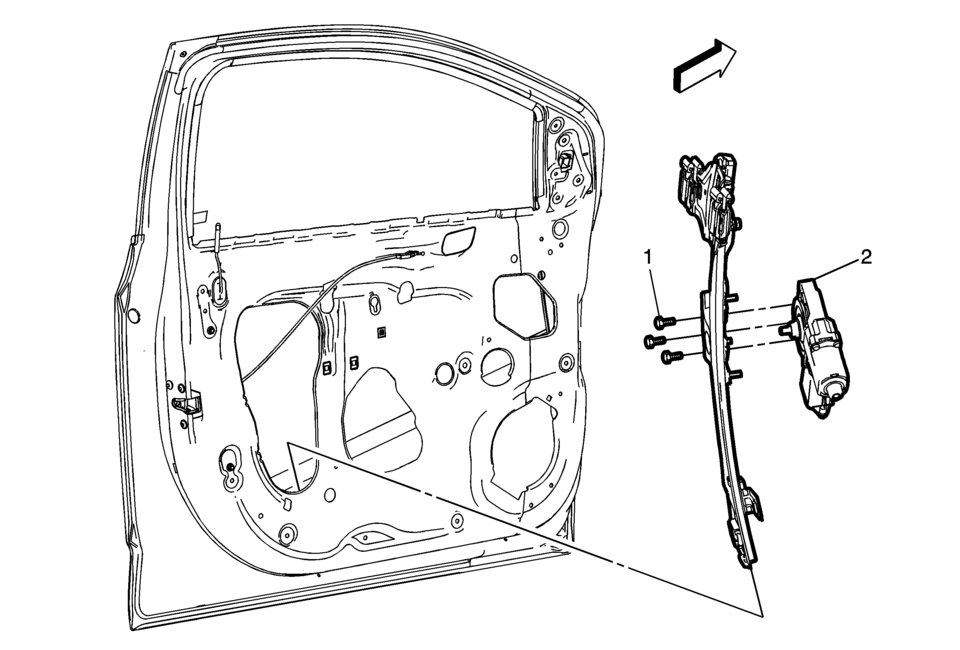

Callout

Component Name

Warning:

Refer to Glass and Sheet Metal Handling Warning.

Preliminary Procedure

Remove the front side door window regulator. Front Side Door Window Regulator Replacement.

1

Front Side Door Window Regulator Motor Screw (Qty:?€‰3)

Caution:

Refer to Fastener Caution.

Procedure

  1. Remove the front side door water deflector.
  2. Disconnect the electric connector from the regulator motor.
Tighten


5?€‰Y (44?€‰lb?€‰in)

2

Front Side Door Window Regulator Motor

Procedure

Inspect the door window for proper operation before installing the door trim.
