Chevrolet Sonic Repair Manual: Front Wheel Drive Shaft Seal Replacement - Right Side

Chevrolet Sonic Repair Manual / Powertrain / Driveline / Driveshafts / Front Wheel Drive Shaft Seal Replacement - Right Side

Special Tools

For equivalent regional tools, refer to Special Tools.

Removal Procedure
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
  2. Remove the front suspension skid plate, if equipped. Refer to Drivetrain and Front Suspension Frame Skid Plate Replacement.
  3. Remove the right wheel drive shaft from the transmission. Refer to Front Wheel Drive Shaft Replacement.

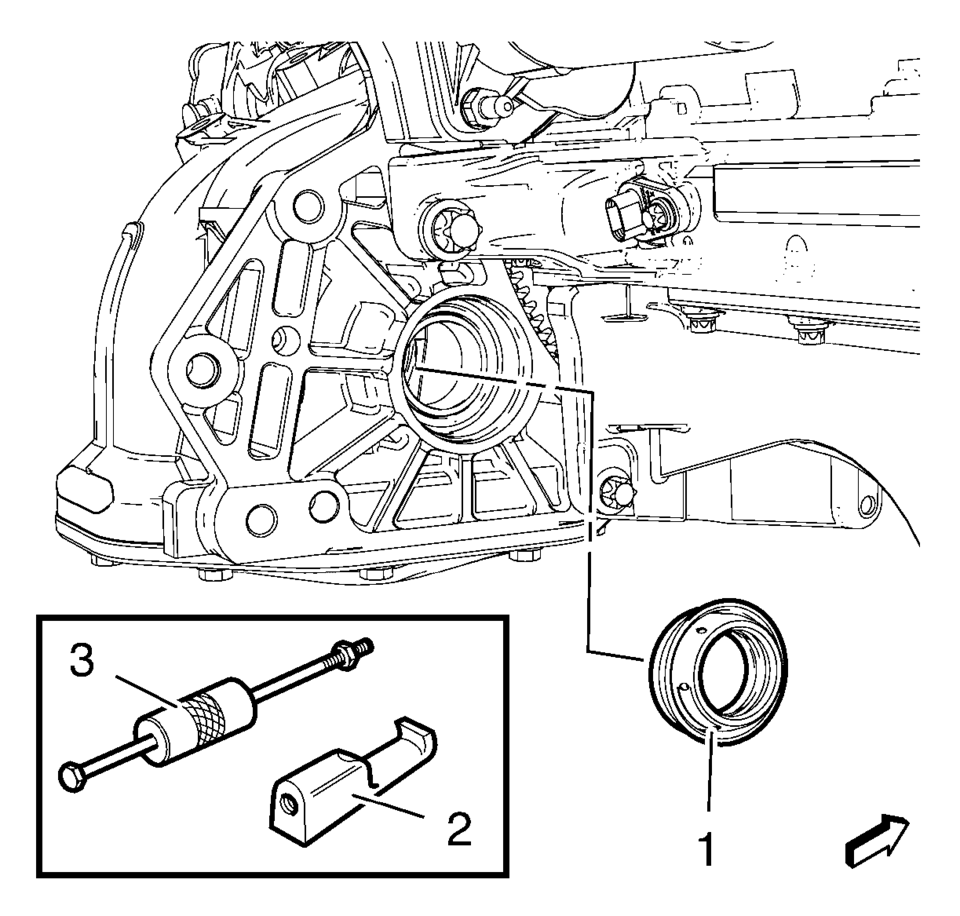

  4. Remove the right front wheel drive shaft oil seal (1) using the DT-7004 hammer and the DT-23129 remover (2).
Installation Procedure

    Coat the NEW right front wheel drive shaft oil seal (1) with transmission
  1. Coat the NEW right front wheel drive shaft oil seal (1) with transmission fluid.

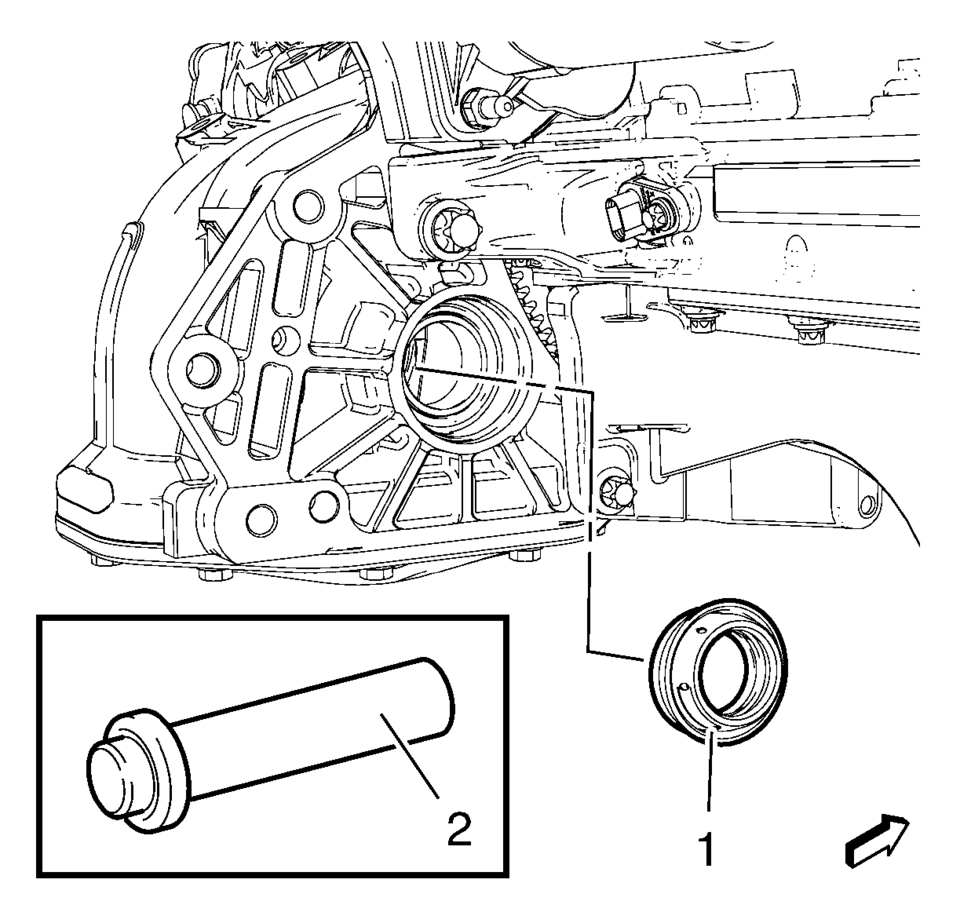

  2. Install the NEW right front wheel drive shaft oil seal (1) using the DT-446 drift and hammer (2).
  3. Install the wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement.
  4. Install the front suspension skid plate, if equipped. Refer to Drivetrain and Front Suspension Frame Skid Plate Replacement.
  5. Lower the vehicle.
