Callout |
Component Name |
---|---|
1 |

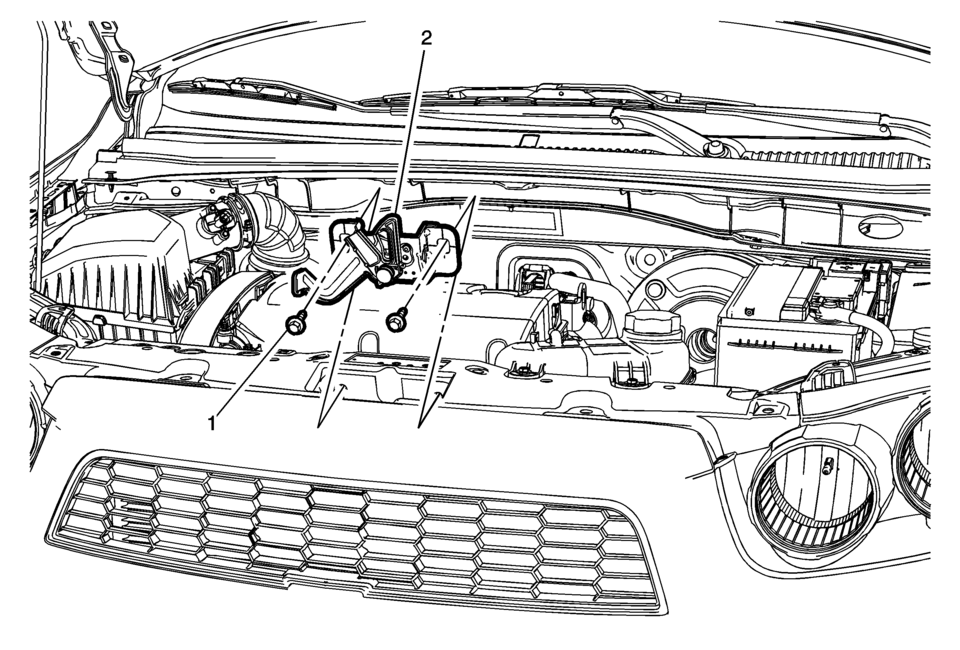

Hood Primary and Secondary Latch Bolt (Qty:?€‰2) Caution: Refer to Fastener Caution.
22?€‰Y (16?€‰lb?€‰ft) |
2 |
Hood Primary and Secondary Latch Procedure
Disconnect the release cable from the hood primary latch. |
Brake Rotor Assembled Lateral Runout Correction - Indexing
Special Tools
CH-45101-100 Conical Brake Rotor Washers
For equivalent regional tools, refer to Special Tools.
Warning: Refer to Brake Dust Warning.
Note:
Brake rotor thickness variation MUST be checked BEFORE checking
for assembled lateral runout (LRO). Thi ...
Tire and Wheel Assembly Runout Measurement - On-Vehicle
Raise and support the vehicle.
Closely inspect each tire for proper and even bead seating.
If any of the tire beads were not properly or evenly seated, reseat the
tire bead, then proceed to step 4. Refer to Tire and Wheel Removal and Installation.
Wrap the circumferenc ...
Cooling Fan Description and Operation (LUV)
The engine cooling fan system is composed of one cooling fan, a series of 5 relays,
the engine control module (ECM), and the associated wiring. The cooling fan assembly
includes two resistors. This combination of components enables the ECM to operate
the cooling fan at 3 speeds usi ...
