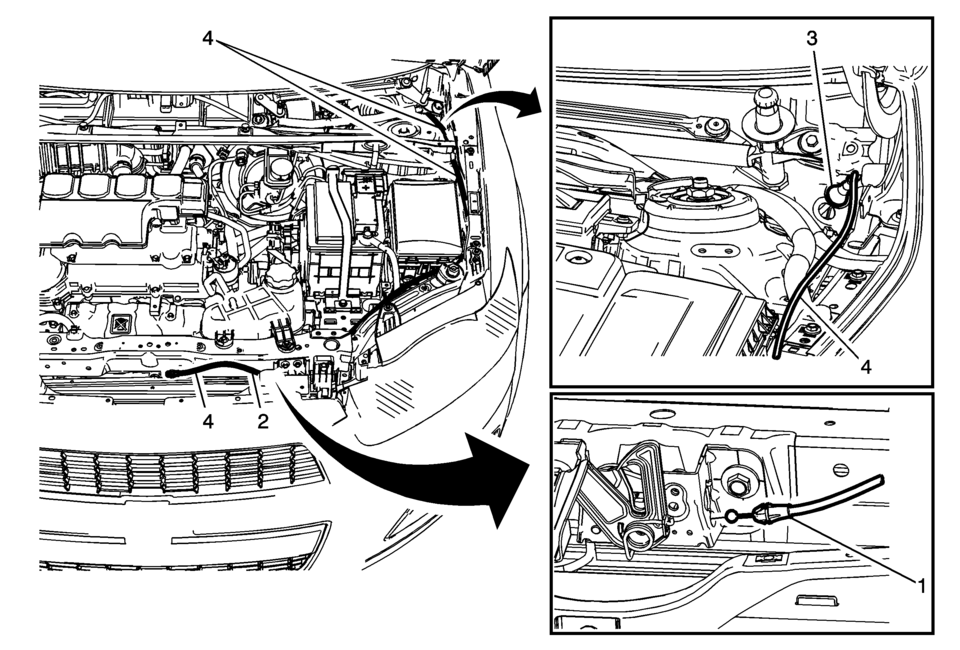

Hood Primary Latch Release Cable Replacement

Callout

Component Name

Preliminary Procedures

  1. Remove the radiator opening upper cover. Refer to Front Opening Upper Cover Replacement.
  2. Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement.

1

Hood Primary Latch Cable

Procedure

Disconnect the hood primary latch release cable from the primary hood latch.

2

Hood Primary Latch Release Cable Retainer

Procedure

Disconnect the hood release cable retainers from the hood release cable.

3

Hood Primary Latch Release Cable Grommet

4

Hood Primary Latch Release Cable

Procedure

Disconnect the hood primary latch release cable handle from the hood latch cable. Refer to Hood Primary Latch Release Cable Handle Replacement.
