Nissan Armada 2025-2026 Owner's Manual: Instrument panel

Nissan Armada 2025-2026 Owner's Manual / Illustrated table of contents / Instrument panel

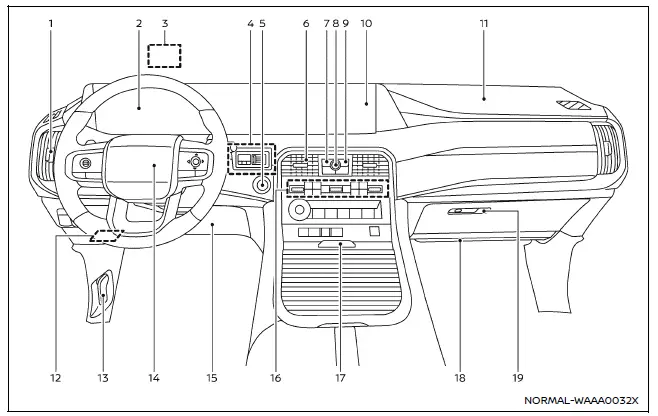

Nissan Armada instrument panel with touchscreen and driver display
Example

The instrument panel of the Nissan Armada combines traditional controls with advanced digital interfaces, delivering a seamless driving experience. The layout ensures that all critical vehicle information and multimedia functions are easily accessible to the driver.

Side ventilator
Meters and gauges Clock
Head Up Display (HUD)*
Trailer Brake Controller Unit (TBCU)*
Push-button ignition switch
Center ventilator
CAMERA*/ button
Audio switches**
Hazard indicator flasher switch
Touch screen display
- Intelligent Around View Monitor*
- RearView monitor*
- NissanConnect system**
- Heater and air conditioner
- Defroster
- Heated steering wheel*
- Heated seats*
- Ventilated seats*
Front passenger supplemental air bag
Fuse box
Hood release handle
Driver supplemental front-impact air bag
Driver supplemental knee air bag
Heater and air conditioner
Console box
- Cup holders
- USB connection ports**
- Wireless charger*
Front passenger supplemental knee air bag
Glove box

*: if so equipped
**: Refer to the separate NissanConnect Owner's Manual (if so equipped).
