Chevrolet Sonic Repair Manual: Cruise Control Package Installation
Installation Instructions Part Number
95142086
|
Qty |
Description |
|---|---|
|
1 |
Steering Wheel with cruise control switch |
|
1 |
Installation Instruction Sheet |
- A torx wrench to release or install the Steering Wheel Bolt

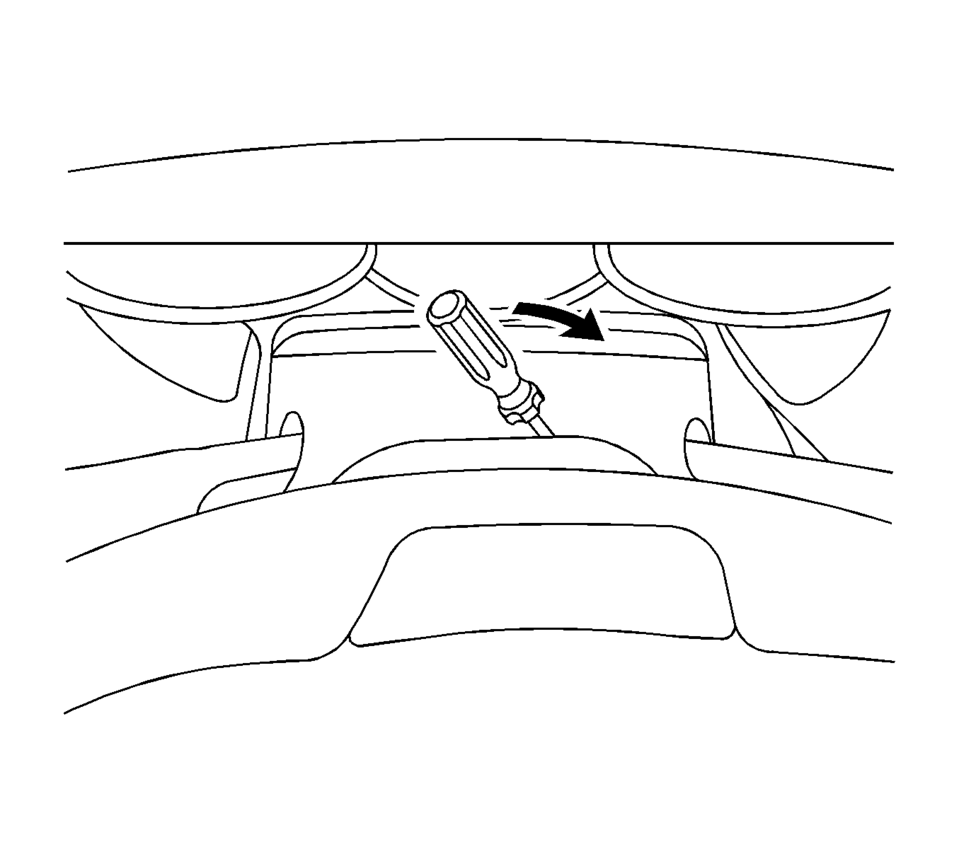

- A flat-bladed screwdriver or an appropriate tool to release the Driver Airbag
Procedure
General
...
Door Lock and Ignition Lock Folding Key Blade Removal and Installation
Special Tools
BO-51098 Flip Key Blade Fixture
For equivalent region tools, refer to Special Tools.
Caution: Failure to properly support the Remote Keyless Entry
(RKE) transmitte ...
