Instrument Panel Outer Air Outlet Duct Replacement

Callout

Component Name

Preliminary Procedures

  1. Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement.
  2. Reposition any wiring or hoses to gain access to air duct.

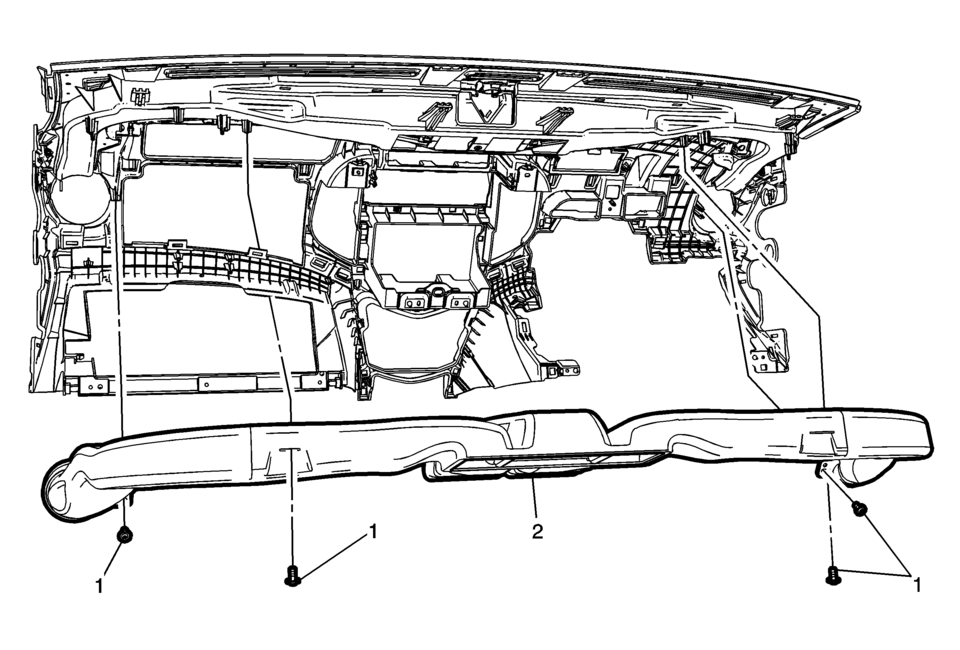

1

Center Air Distributor Duct Screw (Qty:?€‰4)

Caution:

Refer to Fastener Caution.

2

Center Air Distributor Duct

Instrument Panel Lower Trim Pad Cover Replacement (Without AAL)
Instrument Panel Lower Trim Pad Cover Replacement Callout Component Name 1 Instrument Panel Lower Trim Pad Fastener (Qty ...

Instrument Panel Outer Air Outlet Replacement - Left Side
Instrument Panel Outer Air Outlet Replacement - Left Side Callout Component Name Preliminary Procedure Remove the left instrume ...
