Instrument Panel Outer Air Outlet Replacement - Right Side

Callout

Component Name

Preliminary Procedure

Remove the right instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement - Right Side.

1

Instrument Panel Outer Air Outlet Assembly

Procedure

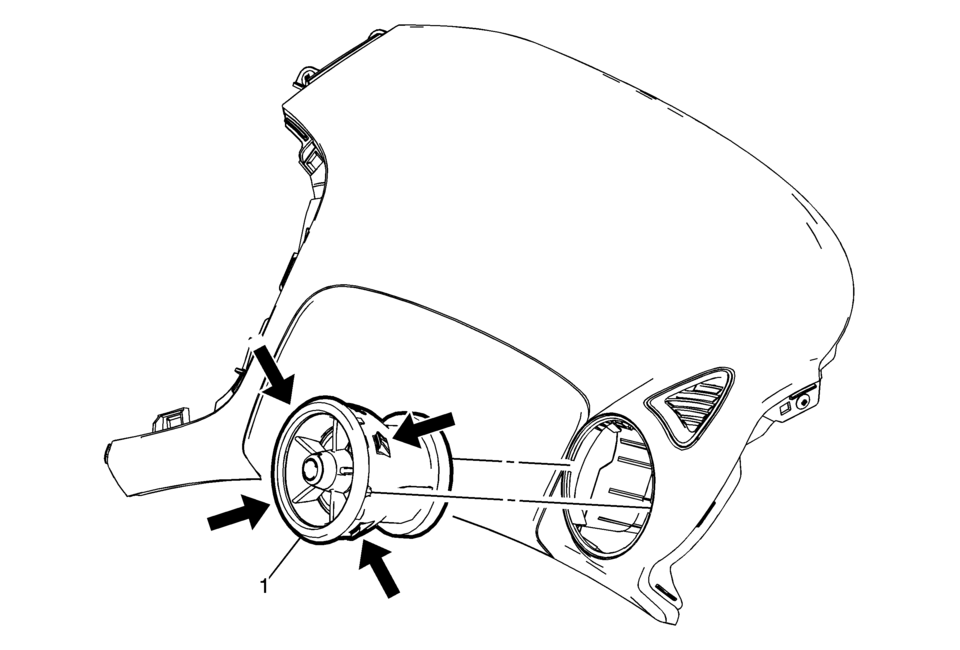

Remove the air outlet assembly by pressing the 4 securing tabs from the inside of the upper trim panel.
