Nissan Armada 2025-2026 Owner's Manual: Interior lights
Basic information
CAUTION
- In the Nissan Armada, avoid leaving interior lights switched on for extended periods when the engine is not running, as this may lead to battery discharge.
- Always switch off all interior lighting before leaving the Nissan Armada to preserve battery life and ensure reliable vehicle operation.

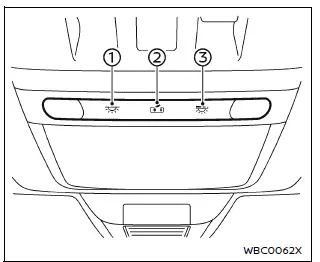

Interior light switch
- In the Nissan Armada, interior lights can be manually turned ON regardless of door position. They will automatically turn off after a certain period unless the ignition is switched to the ON position when a door is opened.
- The Nissan Armada interior lighting can also be configured to activate automatically
when doors are opened.
To disable this function, touch the switch—this prevents the lights from turning on even when doors are opened. The lights will turn off once the ignition is switched ON or when the driver’s door is closed and locked.
- The Nissan Armada map light brightness can be adjusted across four different levels using the brightness control switch, allowing for personalized illumination.

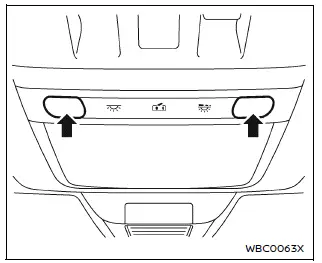

Map lights
To activate the Nissan Armada map lights, simply touch the light surface.
Touch the light again to switch it off.
The Nissan Armada system will automatically turn off the lights after a certain period when the engine is off to prevent battery drain.

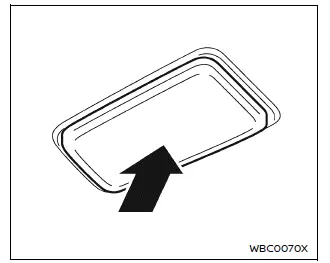

Rear personal lights
In the Nissan Armada, rear passengers can control their personal lights individually.
Touch the light once to turn it on, touch again to dim it, and touch once more to turn it off completely.
The Nissan Armada automatically switches off these lights after a period of time when the engine is off to protect the battery.

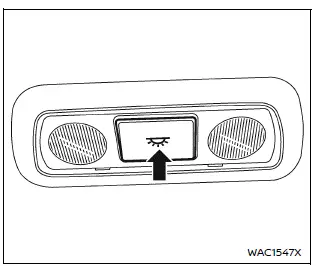

Rear room light
To turn on the rear room light in the Nissan Armada, press the designated switch.
Press the switch again to turn the light off.
The Nissan Armada lighting system will automatically deactivate the rear room light after a certain time when the engine is off.

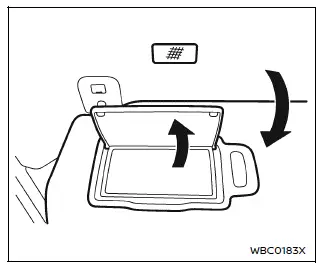

Vanity mirror light
The Nissan Armada vanity mirror light activates automatically when the mirror cover is opened.
Closing the cover will switch the light off.
To prevent battery drain, the Nissan Armada system will turn off the vanity mirror light automatically if left on while the engine is off.
Cargo light
The Nissan Armada cargo light turns on automatically when the liftgate is opened, providing visibility in the cargo area.
This light will also automatically switch off after a certain period if the engine is not running, helping to conserve battery power.
The Nissan Armada interior lighting system is designed to provide both convenience and efficiency, ensuring optimal visibility while maintaining energy-saving functionality.
