Nissan Armada 2025-2026 Owner's Manual: Lights
Basic information

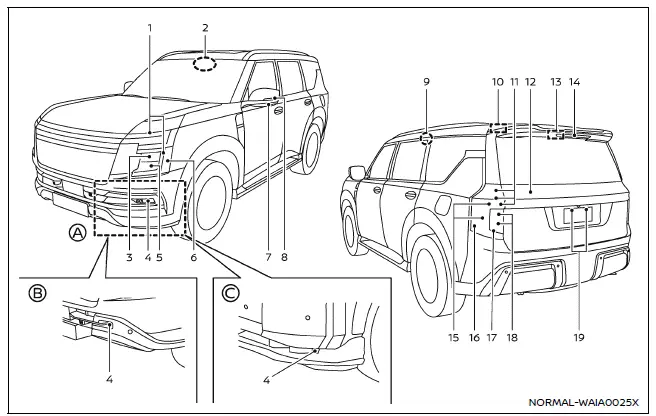

Example
- Front parking light / daytime running light / front turn signal
- Map light
- Headlight (low beam)
- Front fog light (if equipped)
- Headlight (high beam)
- Front side marker light
- Puddle light (if equipped)
- Side turn signal (if equipped)
- Rear personal light
- Rear room light
- Stop light
- Tail light (if equipped)
- Cargo area light
- High-mounted stop light
- Tail light
- Rear side marker light
- Reverse (back-up) light
- Rear turn signal
- License plate light
- Type A bumper
- Type B bumper
- NISMO model bumper
Headlights and rear combination lights
Under certain conditions, such as rain or after washing your Nissan Armada, condensation may temporarily appear inside the light lenses.
This is caused by temperature differences between the inside and outside of the lens and does not indicate a defect.
However, if excessive moisture or large water droplets accumulate inside the lighting assemblies, have your Nissan Armada inspected by a NISSAN dealer.
For any lighting replacement or service, professional assistance is recommended to ensure proper installation and performance.
Exterior and interior lights

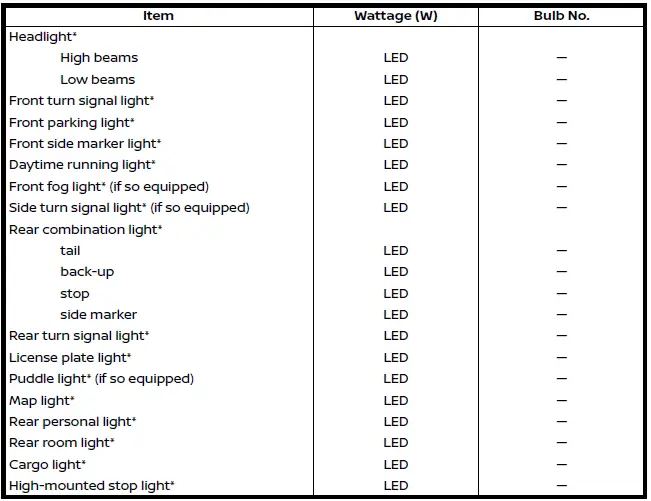

Basic information
*: For certain lighting components, replacement should be performed by a qualified technician or NISSAN dealer.
NOTE: Always consult an authorized NISSAN dealer for the most up-to-date replacement parts and specifications for your Nissan Armada.
Replacement procedures
Due to the complexity of modern lighting systems in the Nissan Armada, including LED and integrated modules, it is strongly recommended to have all replacements carried out by a NISSAN dealer or certified technician.
Regular inspection and proper maintenance of lighting systems are essential for ensuring visibility, safety, and compliance with road regulations while driving your Nissan Armada.
