Chevrolet Sonic Repair Manual: Radiator Upper Bracket Replacement
|

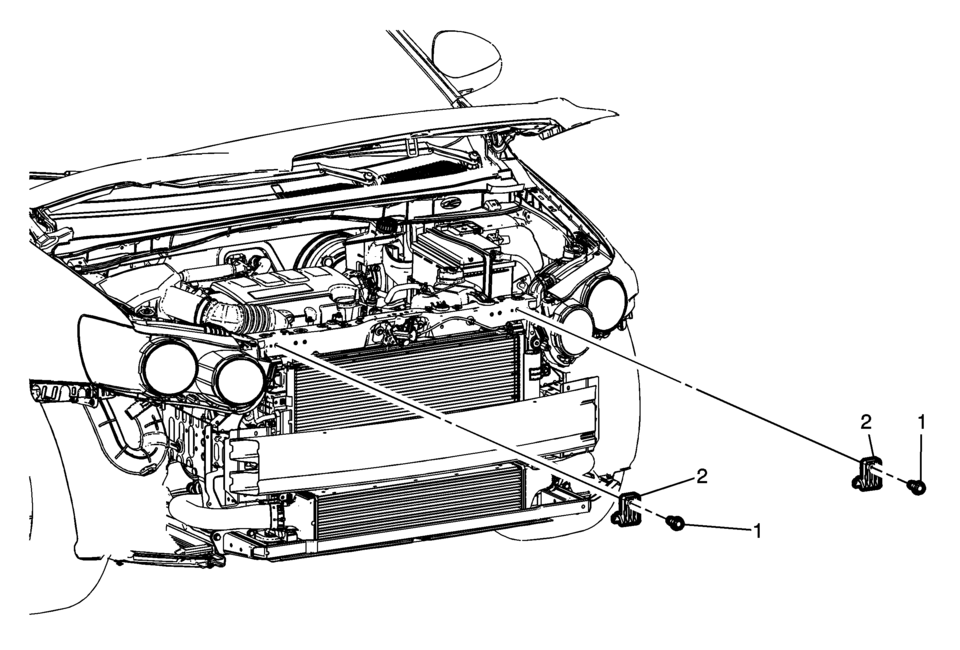

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement. |
|
|
1 |
Radiator Upper Bracket Fasteners (Qty: 2) Caution: Refer to Fastener Caution.
9Y(80 lb in) |
|
2 |
Radiator Upper Bracket (Qty: 2) |
Radiator Surge Tank Replacement
Radiator Surge Tank Replacement
Callout
Component Name
Preliminary Procedure
Drain the coolant. Refer to Cooling System Draining an ...
Radiator Fan
...
