Callout |
Component Name |
---|---|
Preliminary Procedure

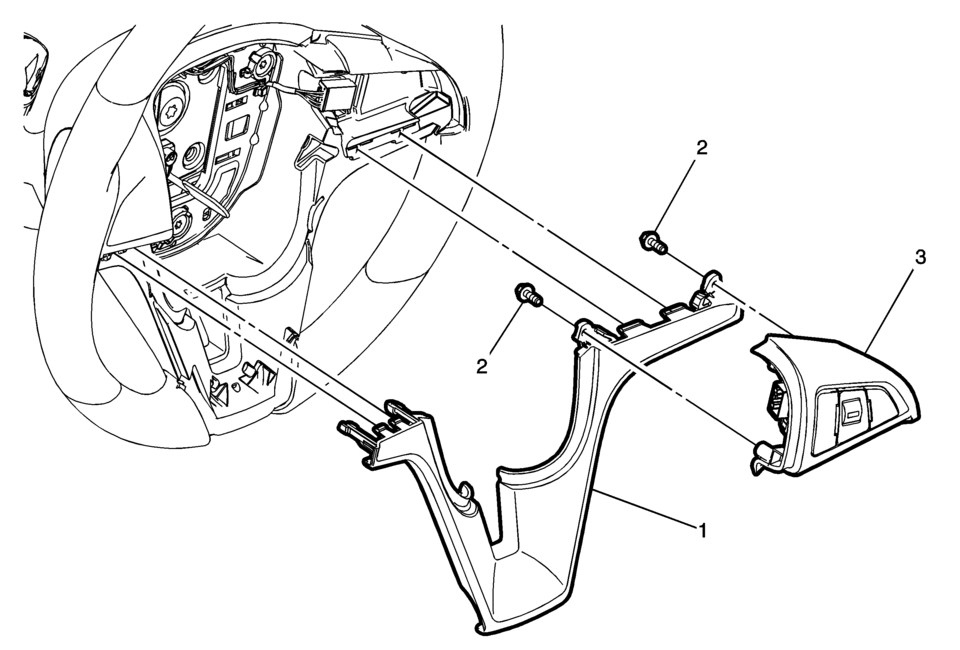

Remove the sterring wheel inflatable restraint module. Refer to Airbag Steering Wheel Module Replacement. |
|
1 |
Steering Wheel Lower Cover |
2 |
Steering Wheel Lower Cover Fastener (Qty: 2) |
3 |
Radio and Telephone Control Switch Assembly Procedure
Disconnect the electrical connector. |
Headlining Trim Panel Replacement (Hatchback without Sunroof)
Headlining Trim Panel Replacement
Callout
Component Name
Warning: Do not attempt to repair or alter the head impact
energy-absorbing material glued to the headliner or to the garnish trims.
If the material is damaged ...
Engine Block Cleaning and Inspection
Special Tools
EN-8087 Cylinder Gauge
For equivalent regional tools, refer to Special Tools.
Clean the sealing material from the gasket mating surfaces (2).
Clean the engine block (1) and lower crankcase in a cleaning tank with solvent
appropriate for aluminum. Refer ...
Piston and Connecting Rod Disassemble
Remove the piston with connection rod. Refer to Piston, Connecting Rod,
and Bearing Removal.
Note: Note installation position of the piston in respect of the
connection rod.
Detach the piston from the connection rod.
Note: Do not damage the bore.
Remove ...
