Chevrolet Sonic Repair Manual: Radio Replacement (Without US8)

Chevrolet Sonic Repair Manual / Accessories / Electronics / Audio / Radio Replacement (Without US8)

Radio Replacement

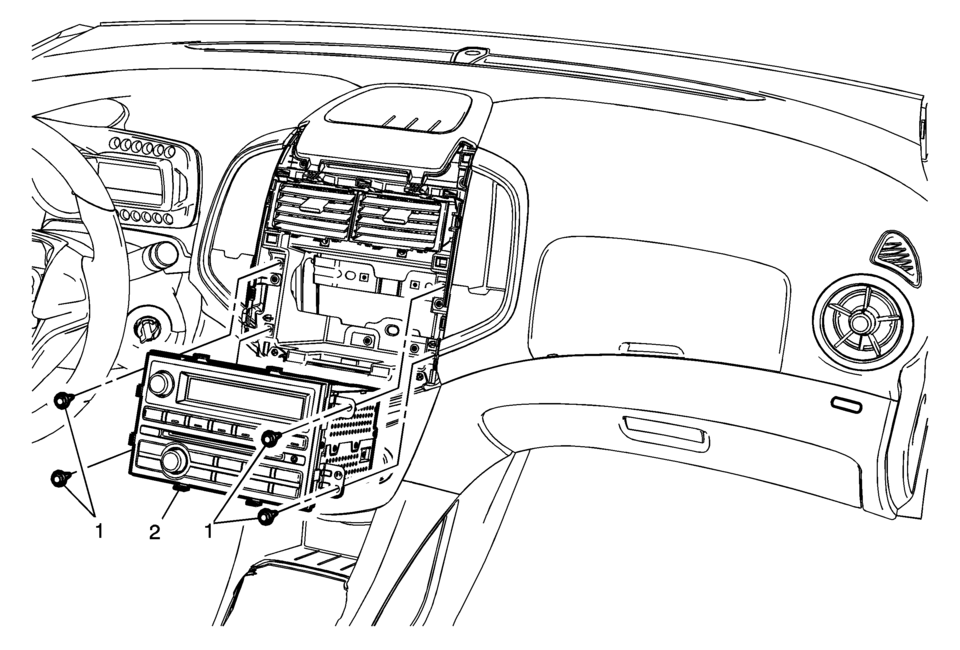

Callout	Component Name
Preliminary Procedure Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement.
1	Radio Bolts (Qty: 4) Caution: Refer to Fastener Caution.
2	Radio Assembly Procedure Disconnect the electrical connections. Refer to Control Module References for programming and setup information.

Radio Replacement (With US8)

Radio Replacement Callout Component Name Preliminary Procedure Remove the instrument panel center molding. Refer to Instrume ...

Radio Windshield Side Garnish Molding Speaker Replacement

Radio Windshield Side Garnish Molding Speaker Replacement Callout Component Name Preliminary Procedure Remove the windshield si ...
