Nissan Armada 2025-2026 Owner's Manual: RCTA system operation

Nissan Armada 2025-2026 Owner's Manual / Starting and driving / Rear Cross Traffic Alert (RCTA) / RCTA system operation

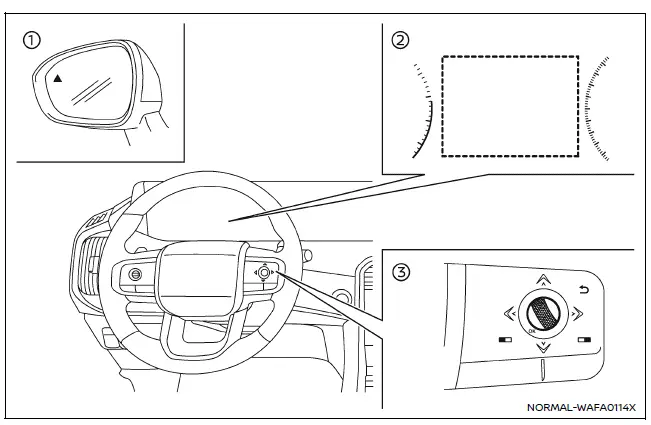

Nissan Armada rear cross traffic alert system diagram and indicators

Side indicator light
Vehicle information display
Steering-wheel-mounted controls (right side)

The Nissan Armada RCTA system enhances driver awareness by monitoring cross traffic when reversing. When the transmission is shifted into R (Reverse) and the vehicle speed remains below approximately 5 MPH (8 km/h), the system becomes active.

If an approaching vehicle is detected from either side, the Nissan Armada emits an audible warning (single chime), and the corresponding side indicator light flashes on the side where the vehicle is approaching.

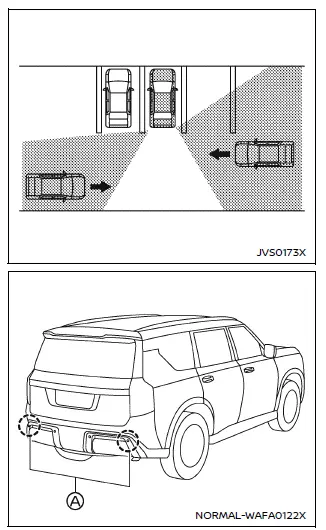

Nissan Armada rear cross traffic alert detection example
Example

The Nissan Armada utilizes radar sensors (A) located on both sides of the rear bumper to monitor cross traffic. These sensors can detect vehicles at distances of up to approximately 66 ft (20 m), providing early warning to the driver.

Basic information

WARNING Failure to properly follow the usage guidelines and safety instructions for the RCTA system in the Nissan Armada may result in serious injury or even death. The Rear Cross Traffic Alert ...

How to enable/disable the RCTA system

Vehicle information display Steering-wheel-mounted controls (right side) Follow these steps to activate or deactivate the Nissan Armada RCTA system: 1. Press the button until the &quo ...
