Callout |
Component Name |
|---|---|
|
Preliminary Procedure

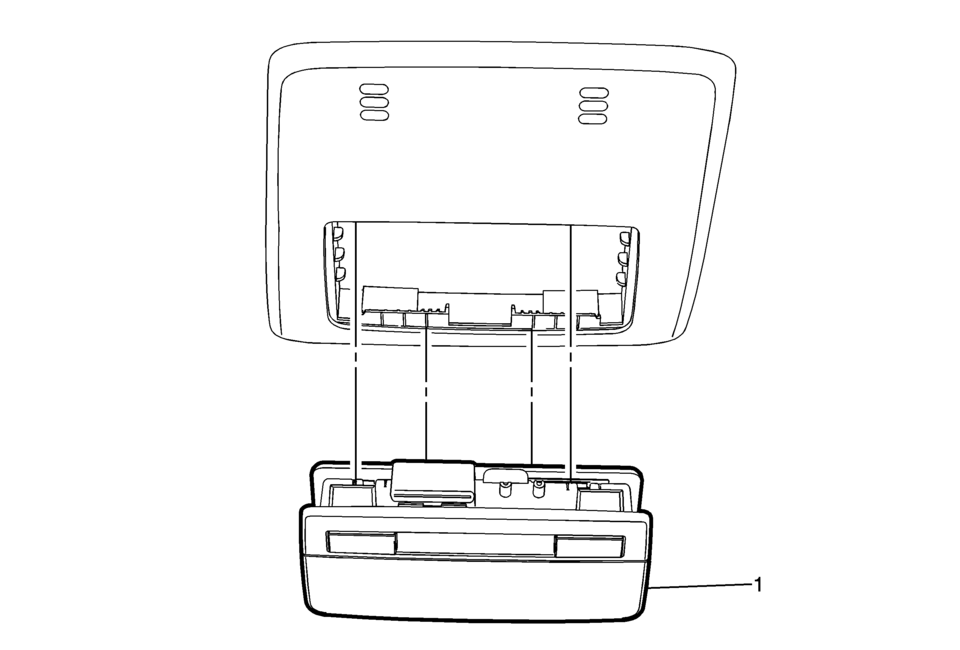

Remove the dome lamp bezel. Refer to Dome Lamp Bezel Replacement. |
|
|
1 |
Reading lamp Procedures
|
Windshield Header Courtesy Lamp ReplacementDimensions - Body (4NB)
Point-to-point measurements are for reference only. All measurements are given
in millimeters. Use these measurements for diagnosing and estimating. Point-to-point
measurements are duplicated with tram bar pointers set at equal lengths. All die
marks, holes, slots, and fasteners are measured t ...
Steering Linkage Inner Tie Rod Inspection
Special Tools
GE-8001 Dial Indicator Set
For equivalent regional tools, refer to Special Tools.
Note: This inspection procedure does not supersede local government
required inspections that have more stringent requirements.
Turn the ignition key to the ON position with the eng ...
Crankshaft and Bearing Removal
Identify all the connecting rod bearing caps (1).
Remove the 4 bolts.
Remove the connecting rod bearing caps 1 and 4 (1).
Turn the crankshaft through 180°.
Remove the 4 bolts.
Remove the connecting rod bearing caps 2 and 3 ( ...
