Rear Seat Head Restraint Guide Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement

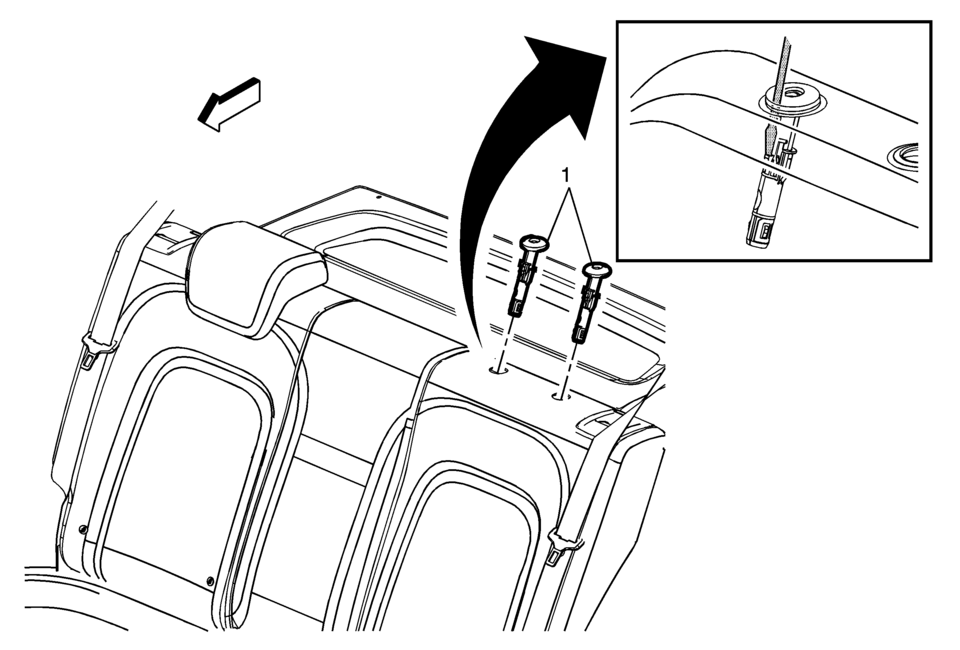

1

Rear Seat Head Restraint Guide

Procedure

Using a suitable flat-bladed tool, slide the tool between the cushion and the guide until you find the slot on the outboard side of the guide. Push inward on the guide slot tab , while pulling upward to remove the guide from the seat back frame.
