Chevrolet Sonic Repair Manual: Rear Side Door Window Outer Sealing Strip Replacement (Sedan)

Chevrolet Sonic Repair Manual / Body / Doors and Enclosures / Doors / Rear Side Door Window Outer Sealing Strip Replacement (Sedan)



Rear Side Door Window Outer Sealing Strip Replacement

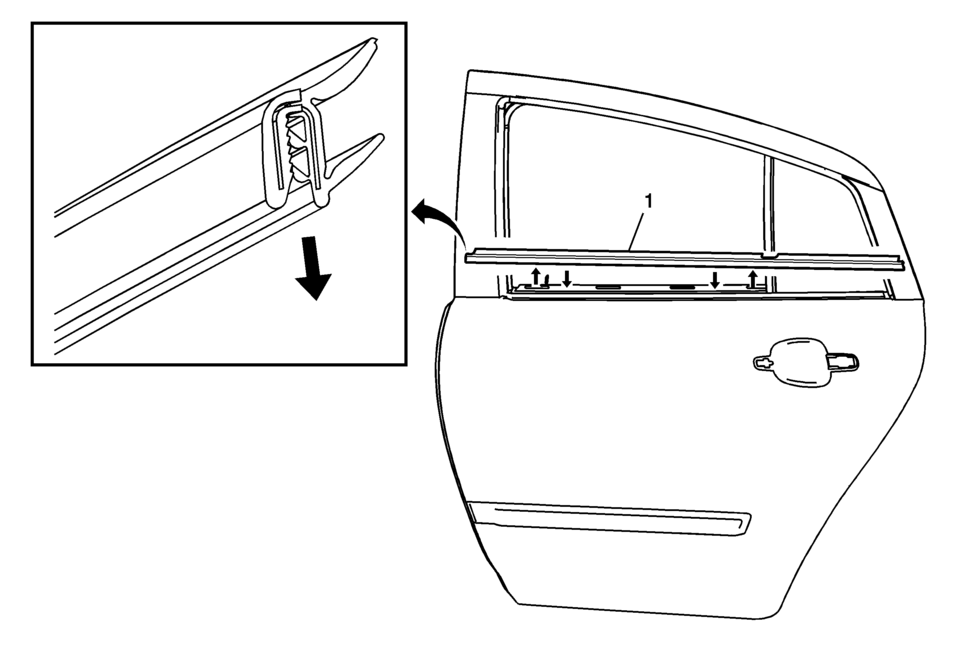

Callout

Component Name

1

Rear Side Door Window Outer Sealing Strip

Procedure

Use the appropriate tool, lift one end up and pull away from the door flange to remove.

Note:

Outer sealing strip can be damaged while removing the strip. If damaged, replace outer sealing strip with a NEW one.
