Callout |
Component Name |
---|---|
Preliminary Procedure

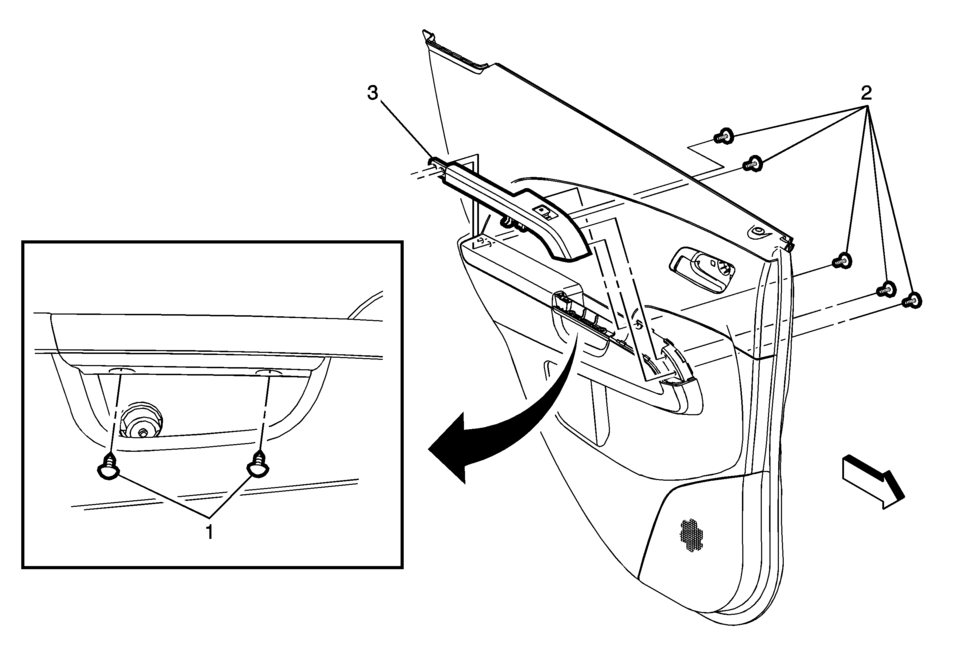

Remove the rear side door trim. Refer to Rear Side Door Trim Replacement. |
|
1 |
Rear Side Door Pull Handle Fastener (Qty:?€‰2) Caution: Refer to Fastener Caution. |
2 |
Rear Side Door Window Switch Bezel Fastener (Qty:?€‰5) |
3 |
Rear Side Door Window Switch Bezel Assembly |
Vehicle Identification Number (VIN)
This legal identifier is in the front corner of the instrument panel, on the
left side of the vehicle. It can be seen through the windshield from outside. The
VIN also appears on the Vehicle Certification and Service Parts labels and certificates
of title and registration.
Engine Identifi ...
Immobilizer System Component Programming
This procedure will learn the immobilizer function. If the battery voltage is
low, charge the battery before proceeding with the learn. If the body control module
(BCM) or engine control module (ECM) have been replaced, they must be programmed
before performing this learn procedure.
Dependin ...
