Nissan Armada 2025-2026 Owner's Manual: RearView Monitor system limitations

WARNING

The Nissan Armada RearView Monitor has certain operational limitations that must always be taken into account. Ignoring these limitations or relying solely on the system without proper visual checks may result in serious injury or even fatal accidents.

• The Nissan Armada camera system cannot completely eliminate blind spots and may fail to display all objects behind the vehicle.
• Areas directly below the rear bumper and near the bumper corners are outside the camera’s viewing range. Small or low-lying objects may not be visible, especially those close to the ground.
• Due to the wide-angle lens used in the Nissan Armada, objects on the display may appear farther away than their actual distance.
• The image orientation in the Nissan Armada RearView Monitor may appear reversed compared to what is seen in mirrors.
• The displayed guide lines are for reference only.

  Their accuracy may be influenced by passenger load, vehicle angle, suspension position, road surface, and incline.

• Ensure that the liftgate of the Nissan Armada is completely closed before reversing to maintain proper camera function.

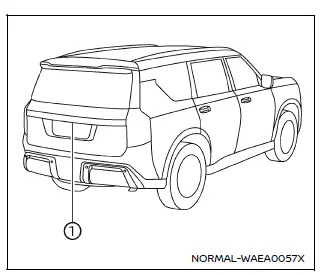

• Never place objects over or near the Nissan Armada rearview camera, which is located above the license plate.
• When washing the Nissan Armada, avoid directing high-pressure water directly at the camera.

  Water intrusion may lead to condensation inside the lens, system malfunction, electrical damage, or fire hazards.

• Avoid striking or applying force to the Nissan Armada camera. It is a precision component and may fail or become damaged, potentially causing electrical issues.

The following Nissan Armada operating characteristics are normal and do not indicate a malfunction:

• In extremely high or low temperatures, the Nissan Armada display may not show objects clearly.
• Direct sunlight or strong glare hitting the camera can reduce image clarity.
• Vertical streaks or lines may appear due to reflected light, especially from the bumper.
• The Nissan Armada display may flicker under fluorescent lighting conditions.
• Colors displayed on the Nissan Armada monitor may slightly differ from real-life object colors.
• In low-light environments, objects may appear dim or unclear.
• A slight delay may occur when switching between camera views.
• If dirt, rain, or snow accumulates on the Nissan Armada camera lens, visibility may be significantly reduced. Regular cleaning is required.
• Do not apply wax to the Nissan Armada camera lens.

  If wax residue is present, remove it using a soft cloth dampened with a mild diluted cleaning solution, then dry the surface carefully.

System maintenance

CAUTION

• Do not use alcohol, бензин, thinner or aggressive chemicals to clean the Nissan Armada camera, as this may cause discoloration or damage.
• Avoid scratching or physically damaging the Nissan Armada camera lens, as this may negatively affect image quality and system performance.

If the Nissan Armada rearview camera becomes dirty due to environmental conditions such as rain, snow, or road debris, the image quality may degrade.

To maintain optimal performance, gently clean the camera lens using a soft cloth slightly dampened with a mild cleaning solution, then wipe it dry.

Regular maintenance of the Nissan Armada RearView Monitor ensures consistent visibility, improved safety, and reliable operation during reversing maneuvers.

Additionally, for best results, always combine the Nissan Armada camera system with direct visual checks and mirror use, as no electronic system can fully replace driver awareness.
