Nissan Armada 2025-2026 Owner's Manual: Resetting the seat positions
Basic information
The Nissan Armada is equipped with a memory system for 3rd row power seats, allowing them to retain their original positions. However, under certain conditions such as power interruption, the stored position may be lost and require recalibration.
WARNING
During the reset procedure in the Nissan Armada, the auto-reverse safety function is disabled because the system cannot detect obstructions.
Ensure that the seat movement path is completely clear of any objects or body parts before starting the reset process.
If the 3rd row seat in the Nissan Armada loses its position (for example, due to a power supply interruption during operation), it may stop incorrectly or behave unpredictably, including improper activation of the auto-reverse function.
If the seat stops in an incorrect position during operation, press and hold the corresponding seat adjustment switch for more than 1 second to manually reposition it.
- During reclining (backward)
Before driving the Nissan Armada, always reset the seat positions to ensure proper operation and safety.
How to reset the original seat positions
The reset procedure can only be performed while the engine is running in the Nissan Armada.

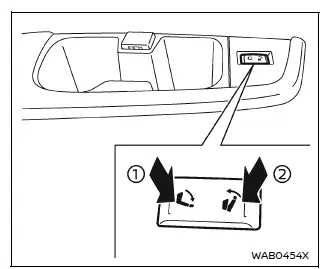

First, press side 2 of the switch, then press side 1 within 1 second. Repeat this sequence 10 times in total:
2 → 1 → 2 → 1 → 2 → 1 → 2 → 1 → 2 → 1
After completing the sequence, the seat will begin moving automatically (reclining). Do not exit the Nissan Armada during this process, as the seat operates automatically.
If the reset procedure is completed successfully, two audible beeps will confirm proper calibration.
If the system does not function correctly after resetting, the seat control system in the Nissan Armada may require professional inspection. It is recommended to have the vehicle checked by an authorized NISSAN dealer.
