Chevrolet Sonic Repair Manual: Secondary Air Injection Pump Pipe Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / Emissions / Air Injection / Secondary Air Injection Pump Pipe Installation


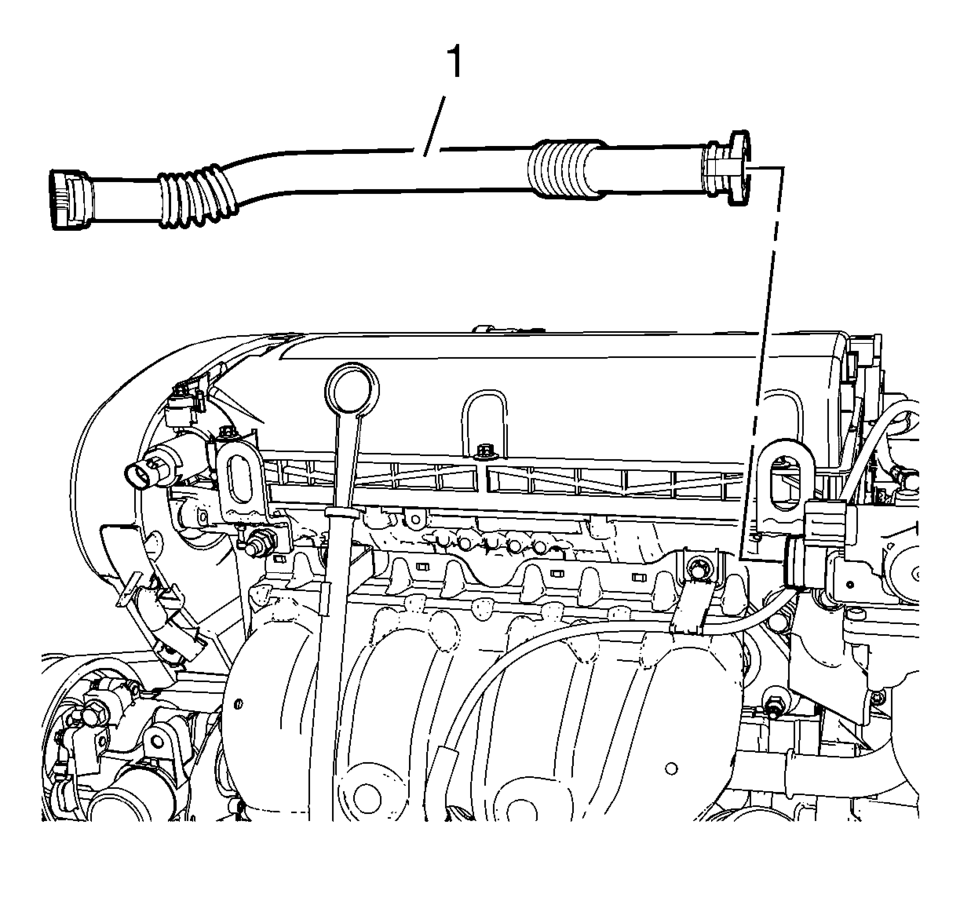

    Connect the secondary air injection pump pipe (3) to the secondary air injection
  1. Connect the secondary air injection pump pipe (3) to the secondary air injection check valve. Refer to Plastic Collar Quick Connect Fitting Service.
Secondary Air Injection Pump Installation
Install the secondary air injection pump (1). Loosely install the secondary air injection pump nut (2) and the 2 secondary air injection pump bolts (4). Ca ...

Secondary Air Injection Pump Pipe Removal
Disconnect the secondary air injection pump pipe (3) from the secondary air injection check valve. Refer to Plastic Collar Quick Connect Fitting Service. ...
