Chevrolet Sonic Repair Manual: Secondary Air Injection Pump Replacement



Secondary Air Injection Pump Replacement

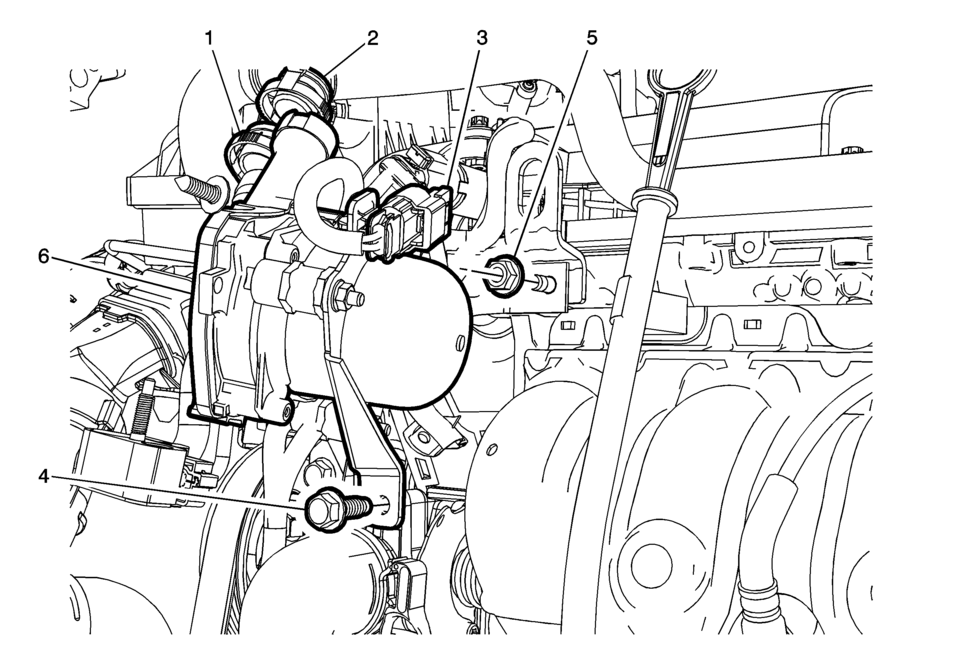

Callout

Component Name

1

Secondary Air Injection Pump Inlet Pipe

Note:

Squeeze the retainer on opposite sides to release.

2

Secondary Air Injection Pump Outlet Pipe

Note:

Squeeze the retainer on opposite sides to release.

3

Secondary Air Injection Pump Electrical Connector

4

Secondary Air Injection Pump Bolt

Caution:

Refer to Fastener Caution.

Tighten


22 Y (16 lb ft)

5

Secondary Air Injection Pump Nut

Tighten


22 Y (16 lb ft)

6

Secondary Air Injection Pump

Secondary Air Injection Pump Pipe Replacement
Secondary Air Injection Pump Pipe Replacement Callout Component Name 1 Hose Retainer (QTY:2) Note: Squeeze the r ...

Secondary Air Injection System Description
The Secondary Air Injection System aids in the reduction of hydrocarbon exhaust emissions during a cold start. This occurs when the start-up engine coolant temperature (ECT) is between −10 t ...
