Illustration |
Tool Number/ Description |
|---|---|
|

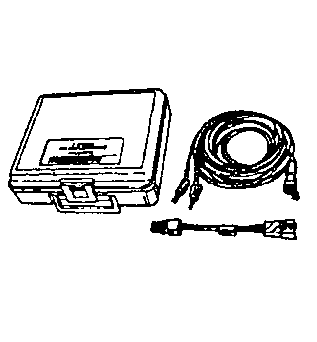

EL?€‰38826 J?€‰38826 KM?€‰799-3 SIR Deployment Harness |
|

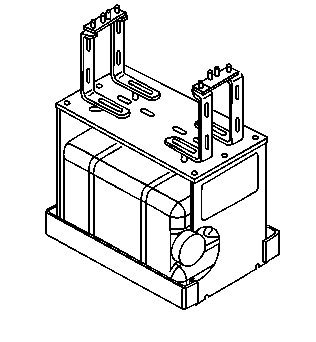

EL?€‰39401-B J?€‰39401-B SIR Deployment Fixture |
Seat Adjustment
Steering Wheel Airbag Coil ReplacementBrake Drum Diameter Measurement
Warning: Refer to Brake Dust Warning.
Remove brake drum. Refer to Brake Drum Replacement
Clean the brake shoe lining contact surface of the brake drum (2) with denatured
alcohol or an equivalent approved brake cleaner.
Using a brake drum micrometer (1) calibra ...
Tire and Wheel Assembly Runout Measurement - On-Vehicle
Raise and support the vehicle.
Closely inspect each tire for proper and even bead seating.
If any of the tire beads were not properly or evenly seated, reseat the
tire bead, then proceed to step 4. Refer to Tire and Wheel Removal and Installation.
Wrap the circumferenc ...
Transmission System Description and Operation
The F17 is a 5 speed manual transmission assembly.
Note: Use only transmission fluid listed within the
Adhesives, Fluids, Lubricants, and Sealers for
this manual transmission assembly. Other lubricants or additives may affect
the shift performance.
The F17 (Gen 1) 5 Speed m ...
