Chevrolet Sonic Repair Manual: Special Tools
|
Illustration |
Tool Number / Description |
|---|---|
|

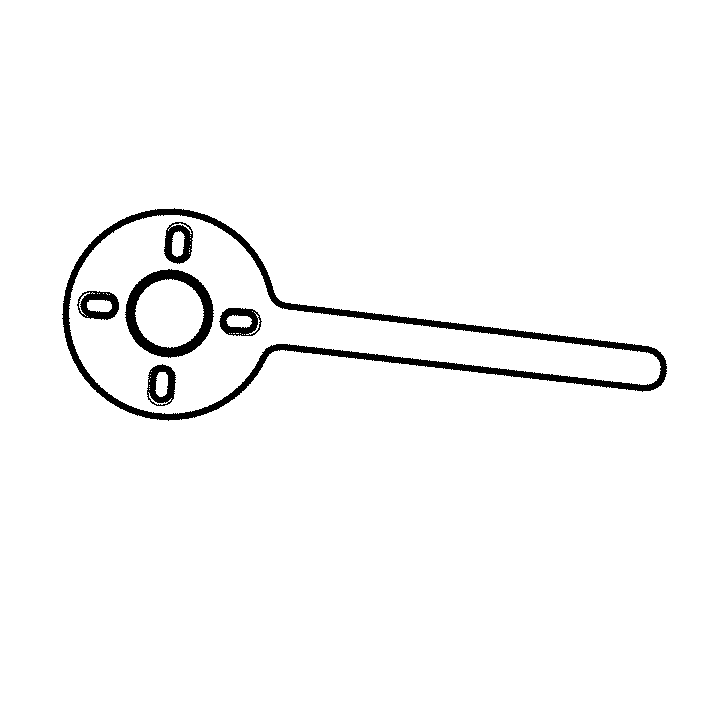

CH?E9376 Holding Wrench |
|

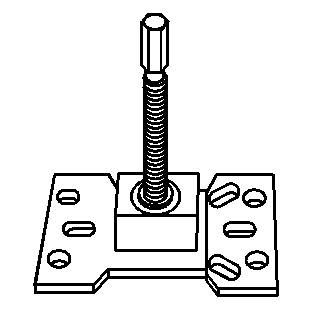

CH?E9400 J-45859 Hub Spindle Remover |
|
DT-6332 Seal Protector |
|
DT-35910 CH-8904 J-35910 Drive Axle Boot Clamp Pliers |
|

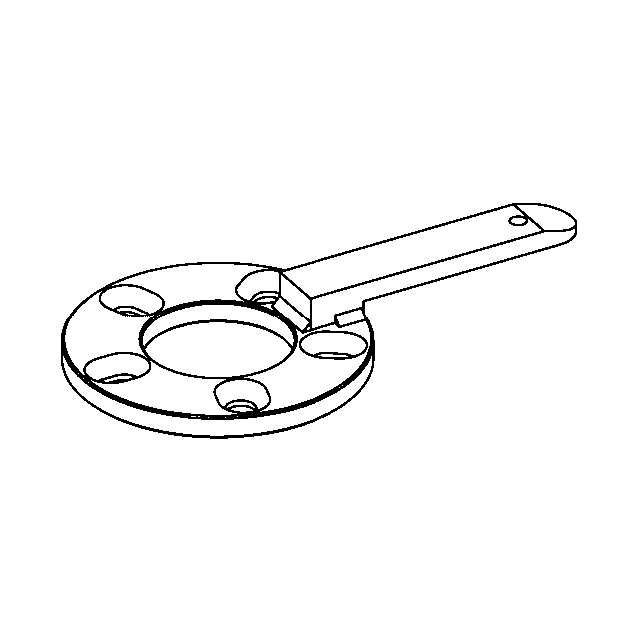

DT?E0186 Wheel Hub Holding Tool |
|

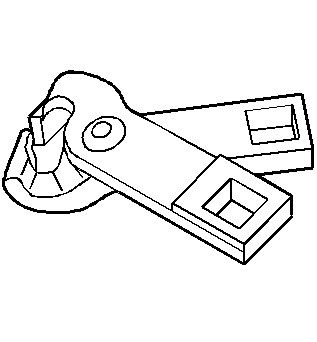

EN-956?E KM-956?E Extension |
Front Wheel Drive Shaft Seal Replacement - Torque Converter Housing Side
Front Wheel Drive Shaft Seal Replacement - Torque Converter Housing
Side
Callout
Component Name
1
Front Wheel Drive S ...
Wheel Drive Shaft Inner Joint Inspection
Inspection Procedure
Remove the front wheel drive shaft inner joint and boot. Refer to Front
Wheel Drive Shaft Replacement.
Remove the wheel drive shaft tripod bushing ...
