Chevrolet Sonic Repair Manual: Special Tools
|
Illustration |
Tool Number/Description |
|---|---|
|

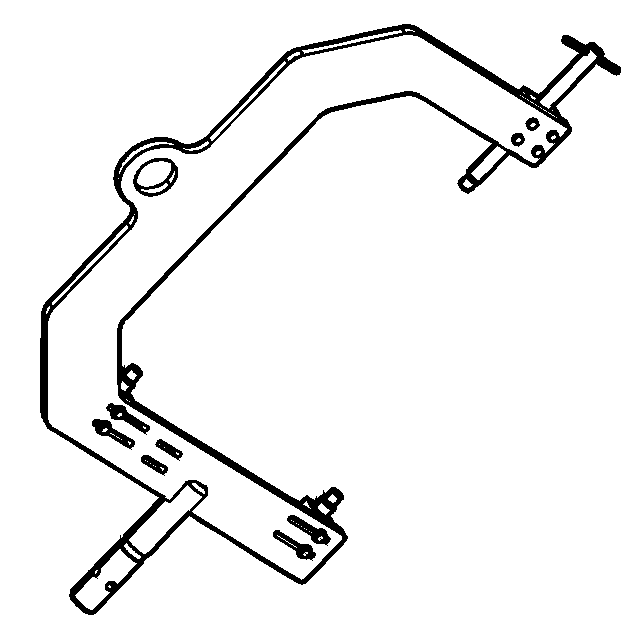

3-9607433 Transmission Support |
|
DT-586 J-23129 KM-586 Universal Seal Remover |
|

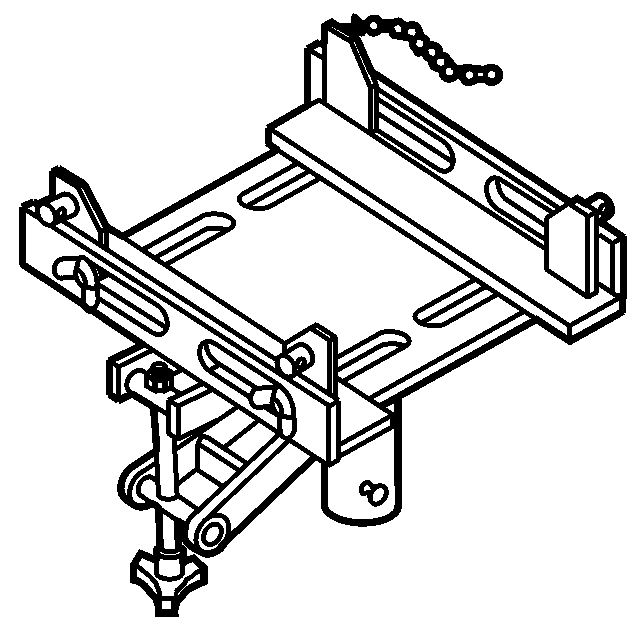

DT-3289-20 J-3289-20 Holding Fixture |
|

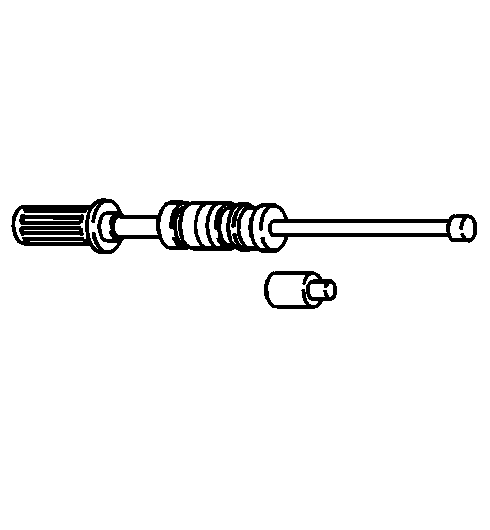

DT-7004 J-6125-1B KM-J-7004 Slide Hammer with Adapter |
|
DT-8059 J-8059 KM-396 Snap Ring Pliers-Parallel Jaw |
|
DT-8092 J-8092 KM-J-8092 DW340-010 Driver Handle |
|
DT-21366 J-21366 Converter Holding Strap |
|
DT-28585 J-28585 KM-J-28585 Snap Ring Remover |
|
DT-39890 J-39890 Transmission Holding Fixture Adapter |
|
DT-41229 J-41229 Manual Shaft Pin Installer |
|

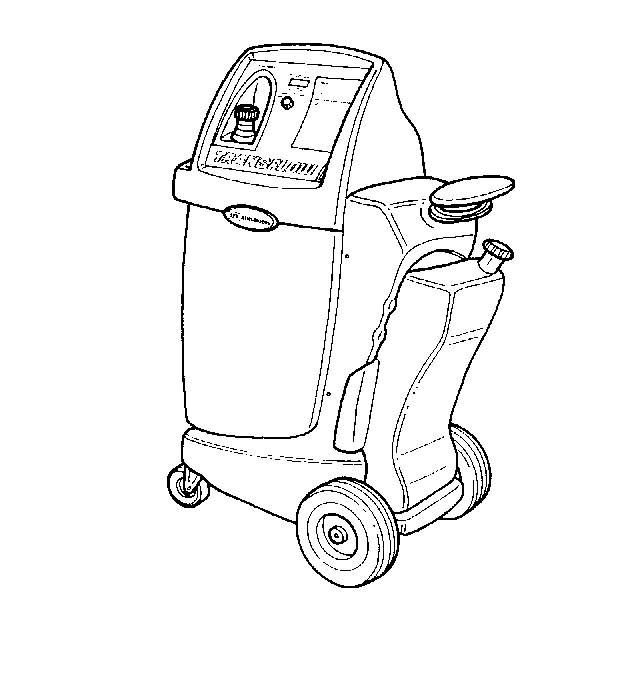

DT-45096 J-45096 Transmission Oil Cooling System Flush and Flow Test Tool |
|
DT-45096-50 J-45096-50 Transmission Oil Cooler Flush Adapter |
|
DT-45201 J-45201 DT-48203 Cooler Line Seal Remover |
|
DT-46409 J-46409 KM-922 Torque Converter Lifting Handles |
|

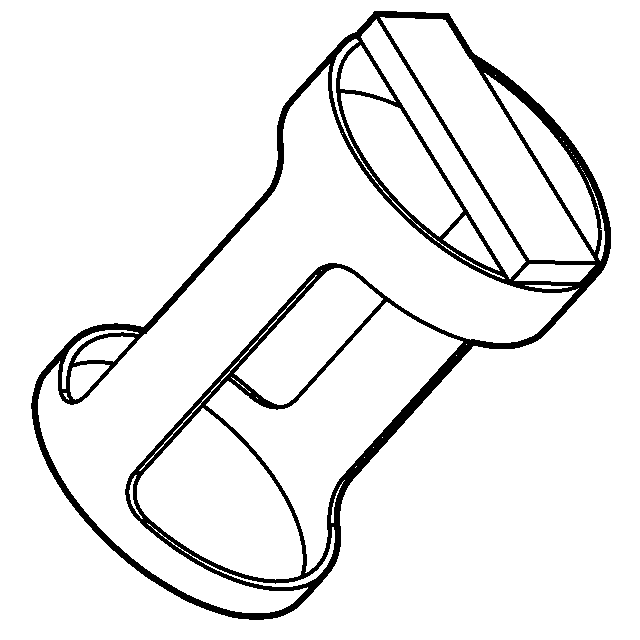

DT-46620 J-46620 Seal Installer |
|
DT-46625 J-46625 Holding Fixture |
|
DT-46625-10 J-46625-10 Holding Fixture Adapter |
|
DT-47694 Spring Compressor |
|

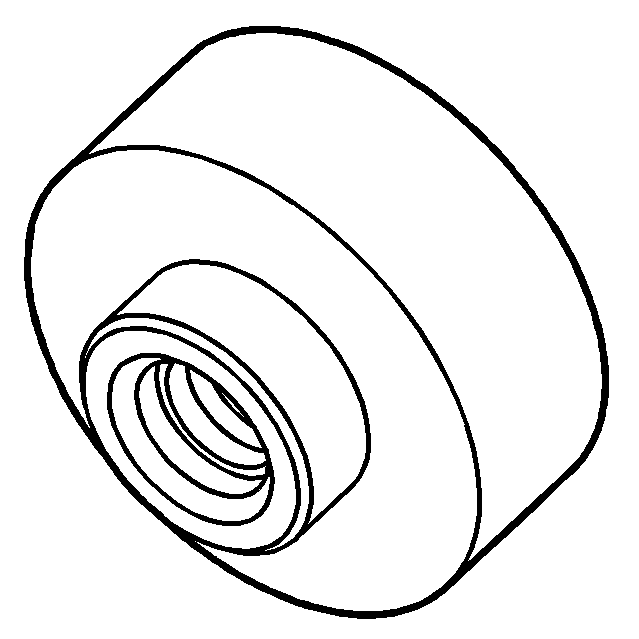

DT-47790 Seal Installer |
|
DT-47791-A Seal Installer |
|
DT-47792 Seal Installer |
|
DT-47793 Differential Rotating Tool |
|
DT-47794 Spring Compressor |
|
DT-47796 Seal Protector |
|
DT-47797 Spring Installer |
|
DT-47798 Seal Protector |
|
|
DT-47799 Clutch Piston Spring Compressor |
|
DT-47805 Seal Protector |
|
DT-47807 Clutch Piston Seal Installer |
|
DT-47811-S1 Lift Plate |
|
DT-47951-1 Seal Protector |
|
DT-47951-2 Spring Compressor |
|
DT-48056 Spring Compressor Bridge |
|
DT-48270 Spring Installer |
|
DT-48271 Seal Protector |
|
DT-48272 Spring Installer |
|
DT-48273 Seal Protector |
|
DT-48274 Spring Compressor |
|
DT-48277 Differential Rotating Tool |
|
DT-48550 Detent Lever Pin Remover |
|

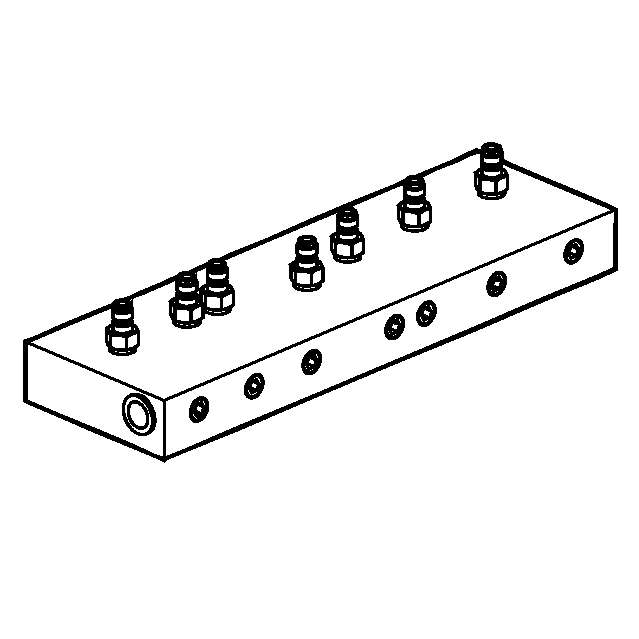

DT-48616 Control Solenoid Test Plate |
|
DT-48616-10 Adapter Harness |
|
DT-48866 Spring Compressor |
|
DT-48903 Spring Compressor |
|
DT-49101 Seal Installer |
|
DT-49131 Seal Staking Tool |
|
DT-50369 Seal Protector |
|

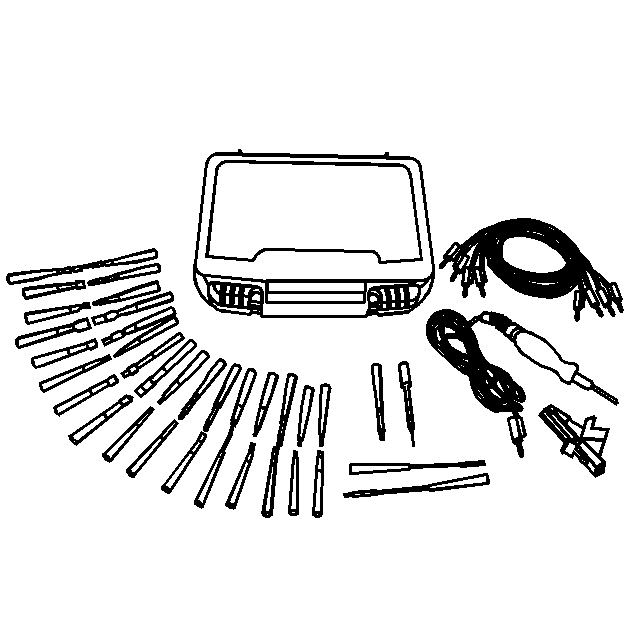

EL-35616 J 35616 Terminal Test Probe Kit |
|
EL-38522 J-38522 Variable Signal Generator |
|

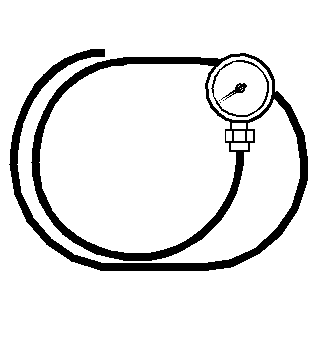

EN-21867 GE 21867 J-21867 Pressure Gauge |
|
EN-45059 J-45059 Angle Meter |
|
EN-680770 M-680770 Universal Sliding Malet |
|
EN-9703392 J-9703392 Hydraulic Jack |
|
GE-5586-A J-5586-A Snap Ring Pliers |
|
GE-21867-A J-21867-A Oil Pressure Gauge Kit |
|
GE-34673 J-34673 Flat Gauge Bar |
