Nissan Armada 2025-2026 Owner's Manual: Specifications

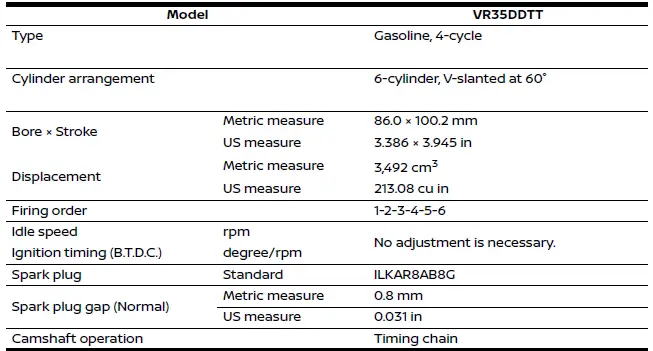

Engine
The spark ignition system in the Nissan Armada is fully compliant with the Canadian ICES-002 standard, ensuring reliable operation and adherence to regulatory requirements.
Wheels and tires

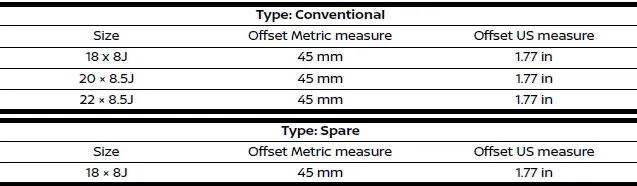

Road wheel
Tire

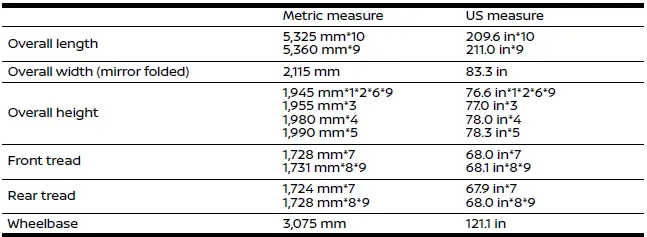

Dimensions
*1 : Models equipped with 18-inch wheels
*2 : Models with 22-inch wheels (without ProPILOT Assist 2.1)
*3 : Models with 20-inch wheels (without air suspension and without ProPILOT Assist
2.1)
*4 : Models with 22-inch wheels (with ProPILOT Assist 2.1)
*5 : Models with 20-inch wheels (without air suspension, with ProPILOT Assist 2.1)
*6 : Models with 20-inch wheels (with air suspension)
*7 : Models without air suspension
*8 : Models equipped with air suspension
*9 : Applies to Nissan Armada NISMO models
*10 : Applies to all Nissan Armada models except NISMO
When traveling or registering in another country
If you intend to travel internationally with your Nissan Armada, it is important to verify that the available fuel in your destination country meets the required specifications for your vehicle’s engine.
Using fuel with an octane rating lower than recommended may result in reduced engine performance or even engine damage. All Nissan Armada gasoline engines require unleaded fuel, so avoid traveling to regions where suitable fuel is not available.
If you plan to register your Nissan Armada in another country, state, or region, modifications may be necessary to comply with local regulations and safety standards.
Emission regulations and safety requirements vary across different regions, which may lead to differences in Nissan Armada specifications depending on the market.
When transporting and registering your Nissan Armada in another jurisdiction, all associated responsibilities—including compliance, modifications, and documentation—fall on the vehicle owner. NISSAN is not liable for any complications that may arise from such processes.
Capacities and recommended fluids/ lubricants
Basic information
The values listed below represent approximate service capacities for
the Nissan Armada and are intended as a general reference for maintenance planning.
Actual refill quantitie ...
Vehicle identification
Vehicle Identification Number (VIN) plate
The VIN plate on your Nissan Armada is mounted as shown and serves as the primary
identifier for the vehicle. This number is essential for registration ...
