Chevrolet Sonic Repair Manual: Stop and Turn Signal Lamp Bulb Replacement (Sedan)
|

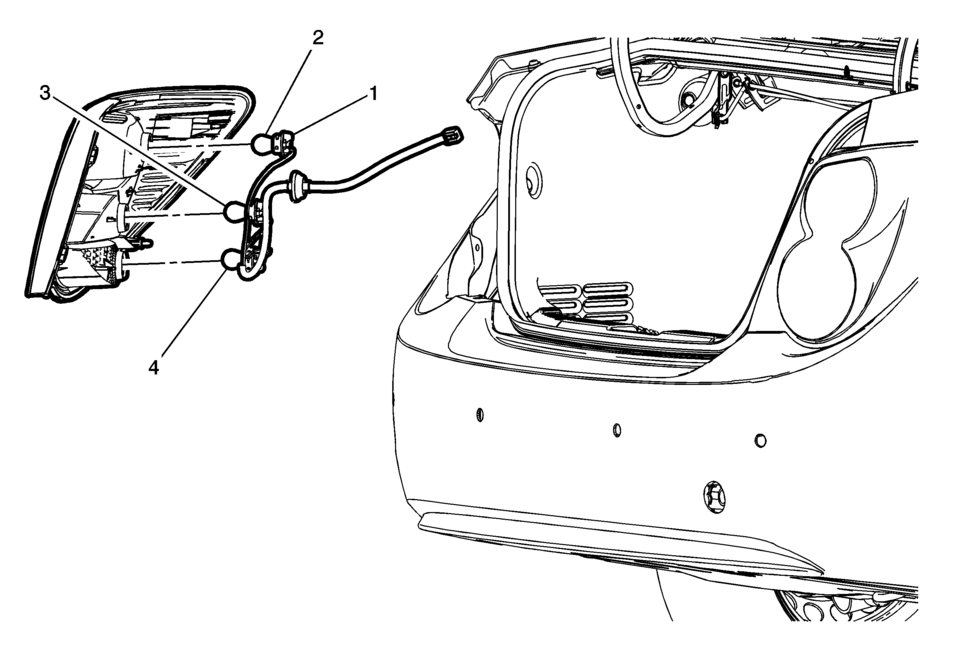

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the tail lamp assembly. Refer to Tail Lamp Replacement. |
|
|
1 |
Tail Lamp Socket Procedure
Rotate the lamp socket counter-clockwise and remove the socket from the lamp housing. |
|
2 |
Park and Stop Lamp Bulb Procedure
Push the bulb inward while rotating counter-clockwise to remove. |
|
3 |
Turn Signal Bulb |
|
4 |
Back Up Bulb |
Replacement Bulbs
Exterior Lamp
Bulb Number
Back-Up Lamp
921
Front Fog Lamp
H8
Front Parking/Turn S ...
Taillamps, Turn Signal, Stoplamps, and Back-Up Lamps
Sedan Taillamp Shown, Hatchback Taillamp Similar
Back-up Lamp
Turn Signal Lamp
Stop Lamp/Taillamp
Sidemarker Lamp
To replace one of these bulbs:
Open the trunk.
Remove the t ...
